Product Details
Manufacturer:
UNI-T
Model:
UT256B
Warranty:
Origin:
CHINA
Technical Specifications
| Specifications | Range | UT256B |
| AC current (A) | 200A | ±(2.5%+5) |
| DC current (A) | 200A | ±(2.5%+5) |
| AC voltage (V) | 750V | ±(1.2%+3) |
| DC voltage (V) | 1000V | ±(0.8%+3) |
| Resistance (Ω) | 60MΩ | ±(1%+2) |
| Capacitance (F) | 60mF | ±(4%+20) |
| Features | ||
| Display count | 6000 | |
| Auto range | √ | |
| True RMS | √ | |
| Diode test | About 3V | √ |
| NCV | √ | |
| Data hold | √ | |
| Zero mode | √ | |
| Relative mode | √ | |
| LCD backlight | √ | |
| Auto power off | About 15 minutes | √ |
| Continuity buzzer | √ | |
| Low battery indication | ≤2.4V | √ |
| Input protection | √ | |
| Input impedance | ≥10MΩ | √ |
| General Characterisitics | ||
| Power | 1.5V battery (R03) x 2 | |
| Display | 36.5mm x 24mm | |
| Product color | Red and grey | |
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

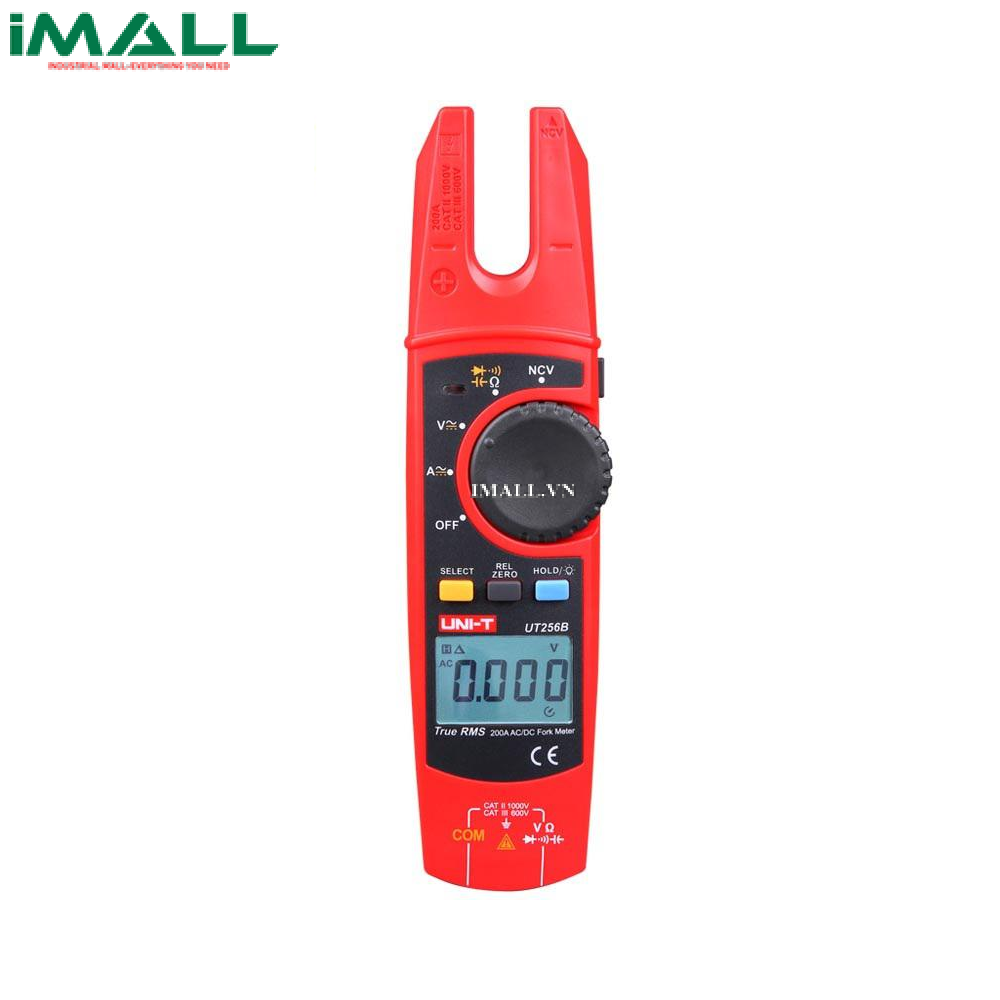

UNI-T UT256B 200A True RMS Fork Meter
UT256B is an AC/DC high reliable, secure true RMS fork meter. Its unique design allows users to measure AC/DC current by simply moving the wire of interest inside the opening of the ‘fork’ past the labeled mark. With no mechanical parts, this meter bares no risk from any type of mechanical failure. UT256B’s full-range overload protection and distinctive appearance design makes it a practical meter for any current measurement up to 200A or voltage up to 1000V (750V AC).
