Product Details
Manufacturer:
KEYSIGHT
Model:
U2751A
Warranty:
Origin:
Authentic
Technical Specifications
- Channels/configuration: 4 × 8, 2-wire
- Switch type: Armature latching
- Input characteristics (per channel)
- Max working voltage
- Standalone: 42 VDC/35 Vrms
- Modular (Used with U2781A): 180 VDC/180 Vrms
- Max transient voltage: 300 Vrms
- Max current
- Switch current: 2A
- Carry current: 2A
- Power (W, VA): 60 W, 62.5 VA
- General specification
- Thermal emf (differential): < 3 μV
- Initial closed channel resistance: < 1.5 Ω
- DC isolation (ch-ch, ch-earth): > 10 GΩ
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

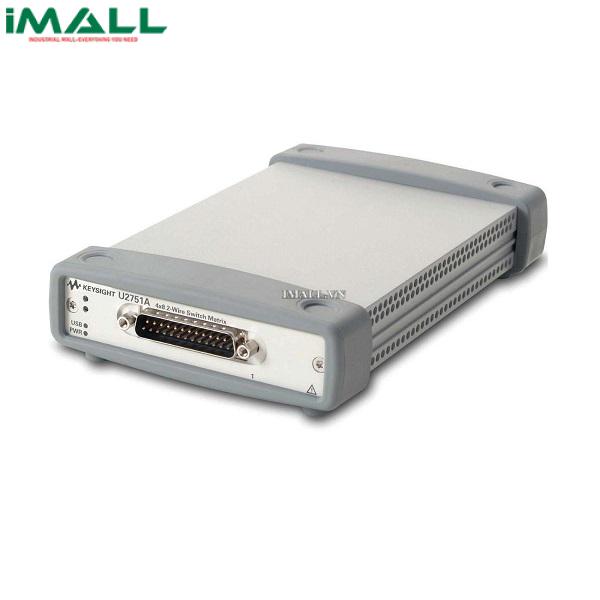

- KEYSIGHT U2751A USB Modular Switch Matrix (300Vrms, 2A)
