  3. KEYSIGHT 34465A Digital Multimeter (6½ digit)
-

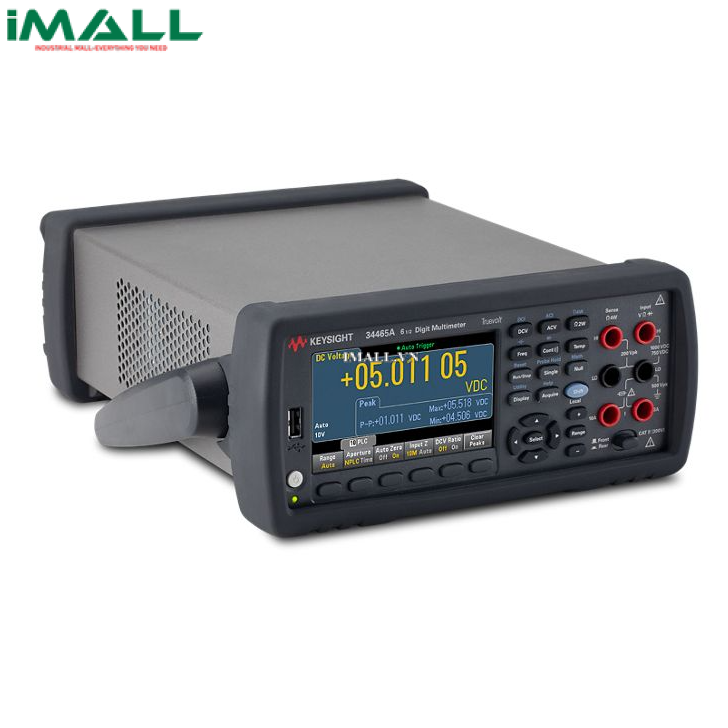

KEYSIGHT 34465A Digital Multimeter (6½ digit)

KEYSIGHT 34465A Digital Multimeter (6½ digit)

https://erp.imall.vn/web/image/product.template/777669/image_1920?unique=715b932

0 ₫ 0.0 VND 0 ₫

0 ₫

Không có sẵn để bán

Kết hợp này không tồn tại.

Liên hệ với chúng tôi

Điều khoản và điều kiện
Hoàn tiền trong 30 ngày
Giao hàng: Từ 2-3 ngày làm việc

Chia sẻ

Product Details

Manufacturer:

KEYSIGHT

Model:

34465A

Warranty:
Origin:

Malaysia

Technical Specifications

  • Digits of resolution: 6½
  • Max reading rate: 50,000 rdgs/s
  • Basic DCV accuracy: 30 ppm
  • Memory: 50,000 rdgs std; 2 million rdgs opt
  • DCV: 100 mV ~ 1,000 V
  • ACV (RMS): 100 mV ~ 750 V
  • DCI: 1 μA ~ 10 A
  • ACI: 100 μA ~ 10 A
  • Resistance: 100 Ω ~ 1,000 MΩ
  • Continuity, diode: Y, 5 V
  • Frequency, period: 3 Hz ~ 300 kHz
  • Temperature: RTD/PT100, thermistor, thermocouples
  • Capacitance: 1.0 nF ~ 100.0 μF
  • Display: Color, graphical
  • Statistical graphics: Histogram, bar chart, trend chart
  • Interface: USB, LAN/LXI Core, GPIB (Optional)

Package Includes

Import Information

HS Code:
Estimated Import Tax:

0,00

Customs Description

KEYSIGHT 34465A Digital Multimeter (6½ digit)

Keysight 34465A 6.5 digit multimeter offers unprecedented levels of accuracy, speed and resolution. They can measure very low current down to a 1 μA range, enabling their use on very low power devices. The ability to auto-calibrate during the measurement allows the 34465A to maintain a calibrated measurement while the instrument may be going through temperature drift/changes. Graphical capabilities, including trend charts and histograms, facilitate greater user insight gained more quickly. This 6.5-digit multimeter model provides a data logging mode for easier trend analysis and a digitizing mode for capturing transients.
  • Histogram, bar, and trend charts on 4.3-inch color graphical display ease monitoring and speed up statistical analysis.
  • Measure with confidence, with 30 ppm basic DCV accuracy.
  • Test low-power devices with 1 µA range and pA resolution.
  • Flexibly automate measurements over USB or LAN/LXI core interface.
  • Digitizing and advanced triggering (DIG) now included.
  • Download BenchVue Basic app for free to control your instruments.
Đồng hồ vạn năng KEYSIGHT 34465A What is included:
  • Standard 3-year Warranty (90 days for unserialized accessories)
  • 34138 Test Lead Set
  • USB Cable
  • Power Cord
  • Certificate of Calibration
The Keysight 34465A 6½ digit, performance Truevolt DMMs offer higher levels of accuracy, speed and resolution. Truevolt DMM's graphical capabilities such as trend and histogram charts offer more insights quickly. The model also provides a data logging mode for easier trend analysis and a digitizing mode for capturing transients. The ability to measure very low current, 1 µA range with pA resolution, allows you to make measurements on very low power devices. Auto calibration allows you to compensate for temperature drift so you can maintain measurement accuracy throughout your workday.
  • So you can perform deeper testing - see One Page Summary for further information
  • Histogram, bar & trend charts on 4.3inch colour graphical display
  • Measure with confidence, with up to 16 ppm basic DCV accuracy (varies according to model)
  • Speed up testing with Keysight BenchVue - no programming required
  • Flexibly automate measurements over USB or LAN/LXI core interface
Thông số kỹ thuật nổi bật của máy KEYSIGHT 34465A
