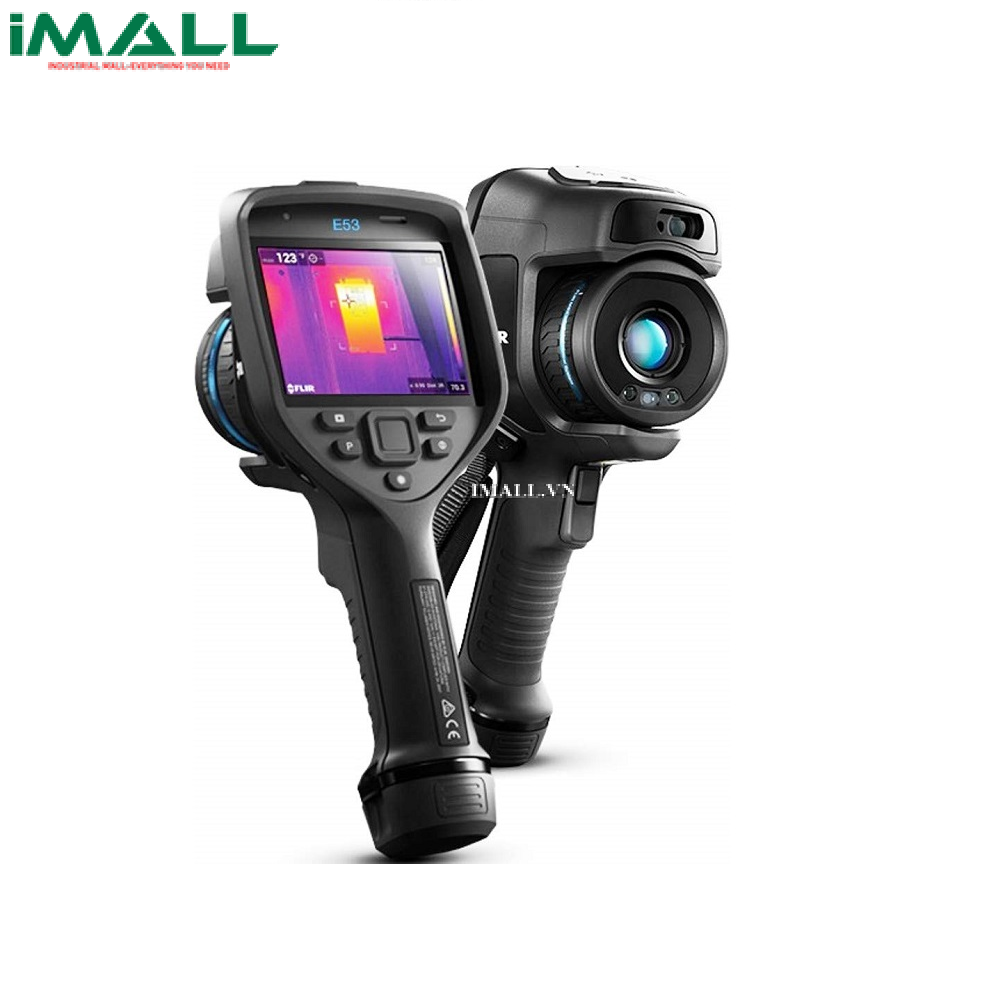

FLIR E53-24 Thermal imaging camera (0°C~ 650°C, 1.75 mrad)

Technical Specifications

• General specifications:
  • IR Resolution: 240 x 180 pixels
  • Temperature measurement range: -20 ° C to 120 ° C (-4 ° F to 248 ° F), 0 ° C to 650 ° C (32 ° F to 1200 ° F)
  • Temperature sensitivity (NETD): <40 mK @ 30 ° C (86 ° F)
  • Spectral range: 7.5 - 14.0 µm
  • Image frequency: 30Hz
  • Field of view (FOV): 24 ° x 18 °
  • Space resolution (IFOV): 1.75 mrad
  • Lens identification: automatic
  • Focus: Focus freely
  • Magnification: 1-4X
• Photo parameters and shooting modes:
  • Display screen: 4 ”, 640 x 480 pixels
  • Camera: 5 MP, 53 ° x 41 ° FOV
  • Color palettes: Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
  • Image mode: IR thermal image, real image, parallel image, MSX®
  • Parallel image mode: display in parallel between normal images and IR images, can be moved and resized
  • MSX® mode: displays temperature details on a high-resolution photo background
  • UltraMax ™ mode: enabled on FLIR Tools + (4X zoom)
• Store photos:
  • Memory: SD memory card (8GB)
  • Picture format: JPEG-14bit standard with measurement data
• Record video and stream:
  • Thermal video format: standard CSQ
  • Normal video format: H.264
  • Broadcast image heat: Via UVC or Wifi
  • Streaming ordinary images: H.264 or MPEG-4 via Wifi, MJPEG via UVC or Wifi
  • Communication standards: USB2.0, Bluetooth, Wifi
  • Video Output: USB Type-C
• Additional parameters:
  • Battery type: Rechargeable Li-ion battery
  • Battery life: 2.5 hours continuous operation at 25 ° C (77 ° F)
  • Operating temperature: –15 ° C to 50 ° C (5 ° F to 122 ° F)
  • Standard: 25 g / IEC 60068-2-27, 2 g / IEC 60068-2-6, IP 54 / IEC 60529; EN / UL / CSA / PSE 60950-1
