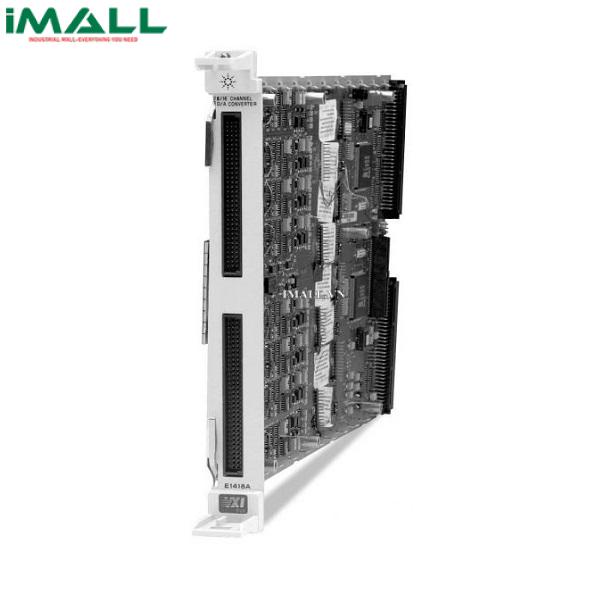

Module chuyển đổi tín hiêu digital sang analog KEYSIGHT E1418A (8/16 Ch, 16-bit, C-Size)
Product Details
Manufacturer:
KEYSIGHT
Model:
E1418A
Warranty:
Origin:
-
Technical Specifications
- Voltage Mode
- Amplitude: ± 16 V
- Resolution: 16 bits (488 µV steps) Monotonic to 2.0 mV
- DC amplitude accuracy (90 days): ± (0.05% + 3.0 mV) (spec)
- Compliance current: >20 mA @ 0 to ± 12 V de-rated linearly to 5 mA @ ± 16 mV
- Short circuit current: <60 mA (spec)
- Differential ripple and noise: <2 mV rms (20 Hz - 250 kHz, into 10 kΩ load)
- Current Mode (typ except where noted)
- Range: 0 to ± 20.00 mA
- Resolution: 16-bit (610 nA steps) monotonic to 25 µA
- Accuracy (90 days): ± (0.09% + 5.0 µA) (spec)
- Compliance voltage: ± 12 V (spec)
- Maximum open circuit voltage: <18 V
- Differential ripple and noise: <2 µA rms (20 Hz - 250 kHz, into 250 Ω load)
- Sample rate: 1 kSa/s per channel
- Data Transfer: A16 or A24, D16
- Size: C
- Slots: 1
- Connectors: P1/P2
