Product Details
Manufacturer:
KYORITSU
Model:
5204BT
Warranty:
Origin:
Authentic
Technical Specifications
- Measuring Range: 0.0～199900 lx
- Range: 199.9/1999/19990/199900 lx
- Resolution: 0.1 lx
- Light detector: Silicon photo diode
- Accuracy ±4%rdg±5dgt（23℃±2℃）
- Angle deviation from cosine characteristics 10°±1.5%
- 30°±3%
- 60°±10%
- 80°±30%
- Temperature characteristics: ±5% (at23℃ reference and a range of 0 to 40℃)
- Relative spectral sensitivity characteristics: Deviation from spectral luminous efficiency: 9% or less
- Response time Auto range: 5s or less
- Manual range: 2s or less
- Communication *1 interface: Bluetooth®Ver.5.0 Android™5.0 or later. iOS 10.0 or later.
- Power source R6/LR6(AA)(1.5V) x 2
- Auto power off 30 min.
- Operation Temperature/ Humidity : 0℃ - 40℃, 80%RH or less（without condensation）
- Storage Temperature/ Humidity: -10℃ - 60℃, 70%RH or less（without condensation）
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

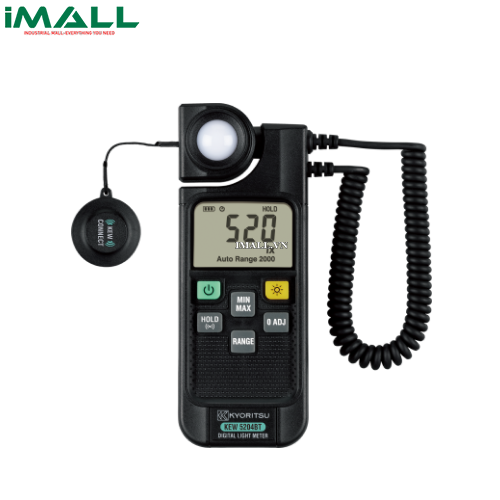

- KYORITSU KEW 5204BT Light Meter (199,900 LUX)
- For efficient good illuminance level achievement and management!
- Bluetooth communication functions
- Wide Range Illuminance Measurement 0.0 lx to 199900 lx
- With auto-zero-adjustment function to achieve precise measurements.
- Detachable & Rotatable Light Sensor
- Data Hold Function
- MAX/MIN Function
- Large LCD with Back Light
- Use the application KEW Smart * to improve work efficiency.
- Download and install our special application "KEW Smart*" in your smartphone or tablet device for logging the
- measured values.
- Measured values can be saved in your smartphone or tablet device in csv format: the data is editable in
- excel format.
- KEW Smart＊
- Please search "KEW Smart" Communication charge may be incurred separately to download application.
- Application for iOS
- Free iOS software "KEW Smart*" is available on "APP Store"
- Supporting iOS 10.0
- Application for Android
- Free Android software "KEW Smart *"is available on "Google Play Store"
- Supporting Android ver.5.0
- Adequate Light Levels for Your Working or at Your Work Areas
- Detachable ＆ Rotatable Light Sensor
- The light sensing probe can be fixed on the meter parallel or perpendicular to the LCD Display.
- Or it may be detached from the unit to fit the measuring requirement.
- Name of Parts and Position
| ① Lens Protecting Cover | ⑥ HOLD button |
| ② Light Sensing Probe/Photocell | ⑦ Max/Min button |
| ③ LCD Display | ⑧ Range selector button |
| ④ Power button | ⑨ 0 ADJ button |
| ⑤ Backlight button | ⑩ Battery cabinet cover |
- Relative Spectral Response Characteristics in the Visible Spectrum
