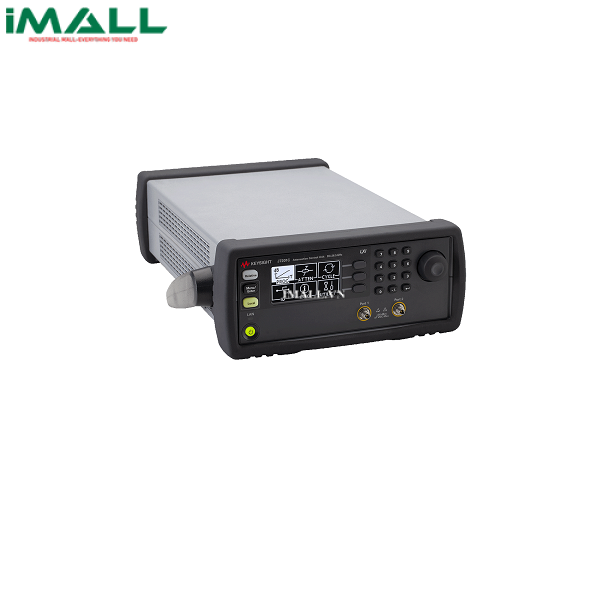

Bộ điều khiển suy hao KEYSIGHT J7201C (26.5 GHz)

Technical Specifications

• Frequency range: DC to 26.5 GHz
• Attenuation range: 0 to 101 dB
• Attenuation step size: 1, 5, 10 dB
• Insertion loss: (at 0 dB) DC to 6 GHz: 2.5 dB 6 to 18 GHz: 4.0 dB 18 to 26.5 GHz: 5.0 dB
• Return loss: (VSWR) DC to 6 GHz: 16 dB (1.35) 6 to 18 GHz: 11 dB (1.78) 18 to 26.5 GHz: 7 dB (2.61)
• RF repeatability per section: 0.03 dB typical
• Maximum input power: 1 W (+30 dBm)
• Switching speed: 20 ms
• Operating life 5 million cycles
• Connectivity: GPIB/USB/LAN (LXI Class C)
• Connector type: 3.5 mm (f)
