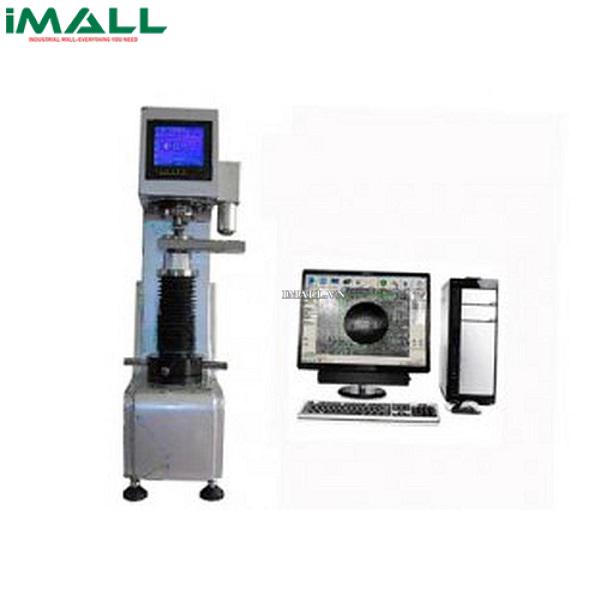

Máy thử độ cứng tự động BRINELL HUATEC HBA-3000A

Technical Specifications

• Technical data:
• Loads:3000kgf (29400N), 1500Kgf (14700N), 1000Kgf (9800N), 750Kgf(7355N),
• 500Kgf (4900N), 250Kgf (2452N), 187.5Kgf (1839N), 125Kgf (1226N),
• 100Kgf (980N), 62.5Kgf(612.9N)
• Load dwell duration: 2s～99s, can be set and stored
• Tungsten Carbide Ball indenter: 10mm
• Measuring range:  3.18HBW~658HBW
• Accuracy of indention measureing: ±0.5%
• Accuracy of Brinell Hardness Value:
• Hardness Range(HBW)    Error (％)    Repeatability(％)
• ≤ 125    ± 2.5    ≤3.0
• 125＜HBW≤225    ± 2.0    ≤2.5
• ＞ 225     ±1.5     ≤2.0
• Max measurable height:  200 mm
• Max measurable depth:  140 mm
• Dimensions:  530mm×260mm×750mm
• Power supply:  220/110 V, 50/60 Hz, 4A
• Standard blocks: 125-350HBW10/3000, 125-350HBW10/1000
