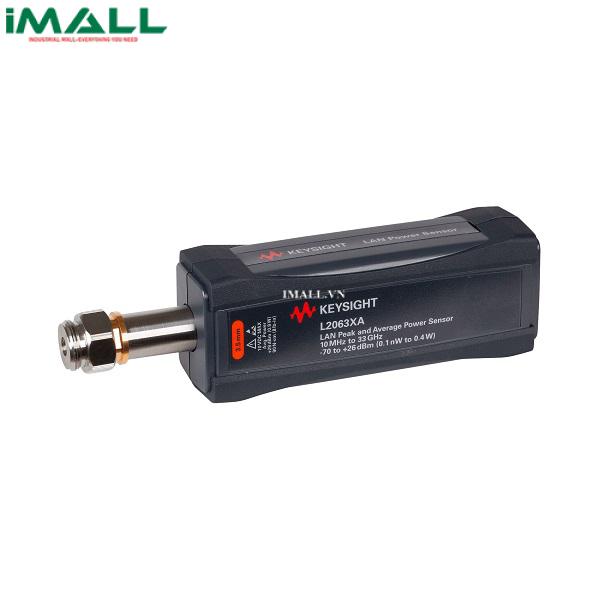

Cảm biến đo công suất KEYSIGHT L2063XA (LAN type, −70 ~ +26 dBm)

Technical Specifications

• Frequency Range: 10 MHz to 33 GHz
• Power range: −70 to +26 dBm
• Connector type: 3.5 mm (male)
• Maximum power
  • Average: +29 dBm
  • Peak: +32 dBm for < 10 µs duration
  • Voltage: ≤ 10 VDC
• Zero and calibration: Internal zero and calibration supported
• Maximum sampling rate: 20 Msamples/second, continuous sampling
• Single shot bandwidth: 5 MHz
• Minimum pulse width: 250 ns
• Rise/fall time: ≤ 100 ns
• Maximum capture length:
  • 1 s (decimated)
  • 6.5 ms (at full sampling rate)
• Maximum pulse repetition rate: 2 MHz (based on 10 samples/period)
