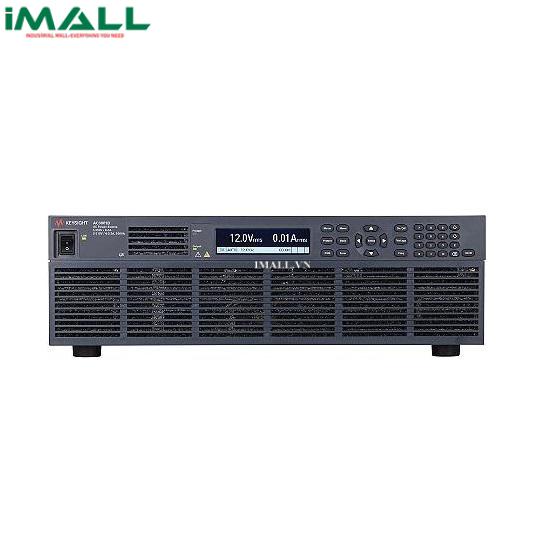

Nguồn AC KEYSIGHT AC6804B (4000VA, 310V, 20A)

Technical Specifications

• Phases: Single-phase
• Maximum output Power: 4000 VA
• AC output mode:
• Voltage range: 155 Vrms / 310 Vrms
• Voltage setting accuracy 0.3%/0.25% full-scale
• Maximum rms current: 40 A/20 A
• Maximum peak current 120 A/60 A
• Frequency 500 Hz
• Measurements Voltage, current, power
• DC output mode:
• Voltage range: 190 V/380 V
• Max current: 32 A/16 A
• Maximum instantaneous current: 96 A/48 A
• Power capacity: 3200 W
• I/O: LAN/LXI Core and USB; Optional: GPIB
