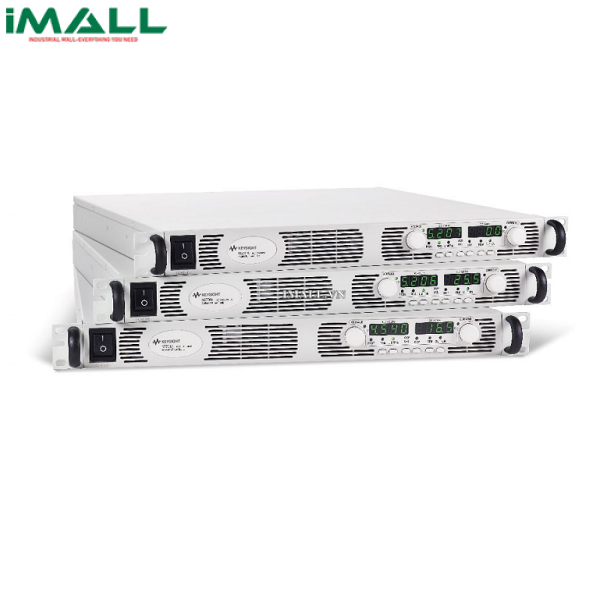

KEYSIGHT N5752A System DC Power Supply (600V, 1.3A, 780W)

Technical Specifications

• DC output ratings: 600V, 1.3A, 780W
• Output ripple and noise: 150 mV p-p; 20 mV rms; 8 mA rms
• Programming accuracy: 0.05%+ 300 mV; 0.1%+ 1.3 mA
• Measurement accuracy: 0.1%+ 600 mV; 0.1%+ 3.9 mA
• Command response time: 55 ms
• Over-voltage protection: Range 5–660V; Accuracy 3V
• Operating temperature: 0°C to 40°C @ 100% load
• Storage temperature: –20°C to 70°C
• Operating humidity: 30% to 90% relative humidity (no condensation)
• Storage humidity: 10% to 95% relative humidity (no condensation)
• Interface capabilities: GPIB, USB 2.0, 10/100 LAN, Web server
• AC input:
  • Nominal input: 100 – 240 VAC; 50/60 Hz
  • Input current 750W: 10.5A @ 100 VAC nominal; 5A @ 200 VAC nominal
  • Input current 1500W: 21 A @ 100 VAC nominal; 11A @ 200 VAC nominal
  • Input range: 85 – 265 VAC; 47 – 63 Hz.

Package Includes
