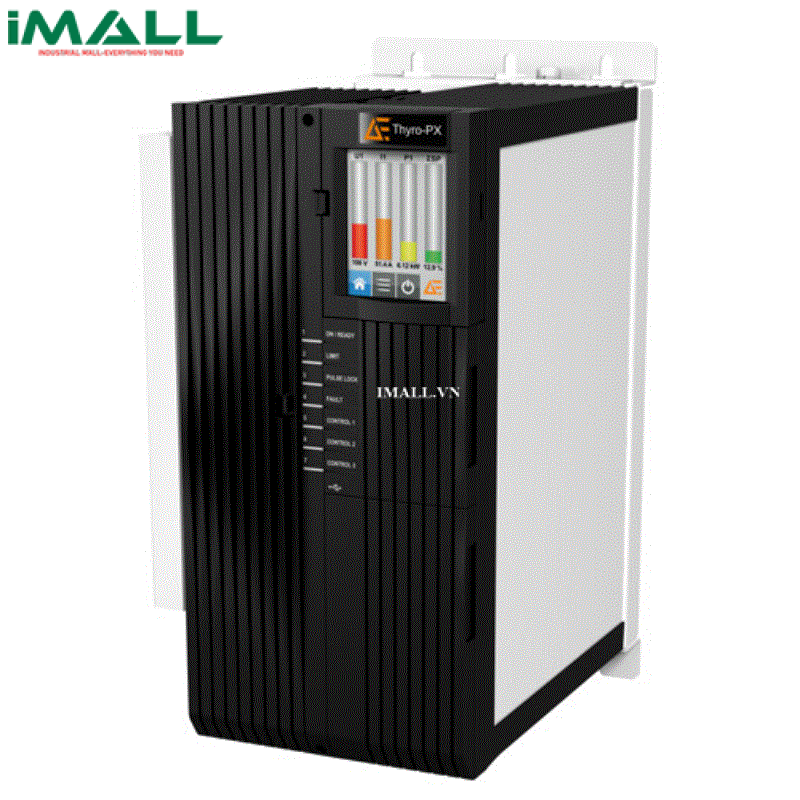

Bộ điều khiển thysitor Advanced Energy Thyro-PX 3PX 690 300HF (690V, 300A, 3 pha)

Technical Specifications

• Control Accuracy: ±0.5% voltage or current, ±1% powerc
• Load Types: Resistive loads, transformer loads, and loads with large Rwarm/Rcold up to factor 20 (MOSI starting mode)
• Operating Modes: TAKT: full frequency package control
• Rated Connection Voltage 500 V type: 230 V -20% up to 500 V +10%
• 690 V type: 500 V -20% up to 690 V +10%
• Frequency All types, 45 to 65 Hz
• Control Voltage AC min 90 to max 265 V; alternative DC 24 V (±10%)
• Ventilator (HF Types Only) 230 V, 50 to 60 Hz; optional 115 VAC, 50 to 60 Hz
