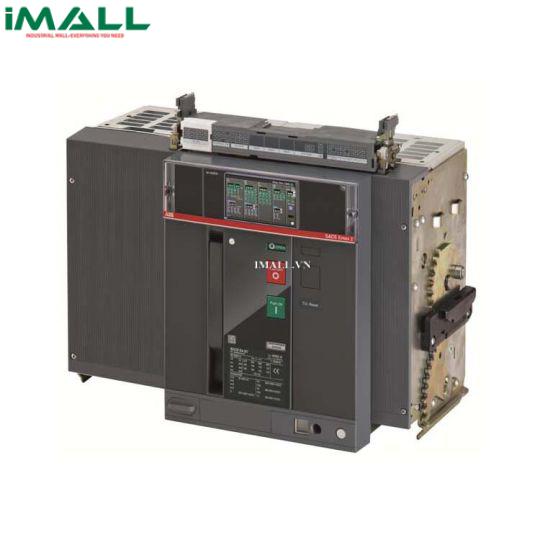

Máy cắt không khí ABB E4.2S 4000 Ekip Dip LSIG 4p WMP (1SDA073183R1)

Technical Specifications

• Current Type: AC
• Electrical Durability:
  • Ue =< 440 V 5000 cycle
  • Ue = 500 ... 690 V 4000 cycle
  • 20 cycles per hour
• Mechanical Durability:
  • 15000 cycle
  • 60 cycles per hour
• Neutral Pole Current ([%Iu]): 100 %
• Number of Poles: 4
• Power Loss: 900 W
• Product Main Type: SACE Emax 2
• Product Name: Air Circuit Breaker
• Product Type: Air Circuit Breaker
• Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics): 100 %
• Rated Current (In): 4000 A
• Rated Voltage (Ur): 690 V
• Rated Impulse Withstand Voltage (Uimp): acc. to IEC 60947-2 12 kV
• Rated Insulation Voltage (Ui): AC 1000 V
• Rated Operational Voltage: 690 V AC
• Rated Service Short-Circuit Breaking Capacity (Ics):
  • (220 V AC) 85 kA
  • (230 V AC) 85 kA
  • (380 V AC) 85 kA
  • (400 V AC) 85 kA
  • (415 V AC) 85 kA
  • (440 V AC) 85 kA
  • (500 V AC) 66 kA
  • (660 V AC) 66 kA
  • (690 V AC) 66 kA
• Rated Short-time Withstand Current Low Voltage (Icw):
  • for 1 s 66 kA
  • for 3 s 66 kA
• Rated Ultimate Short-Circuit Breaking Capacity (Icu):
  • (400 V AC) 85 kA
  • (415 V AC) 85 kA
  • (440 V AC) 85 kA
  • (500 V AC) 66 kA
  • (525 V AC) 66 kA
  • (690 V AC) 66 kA
• Rated Uninterrupted Current (Iu): 4000 A
• Release: Ekip Dip LSIG
• Release Type: EL
• Short-Circuit Performance Level: S
• Standards: IEC
• Sub-type: E4.2
• Version: W
