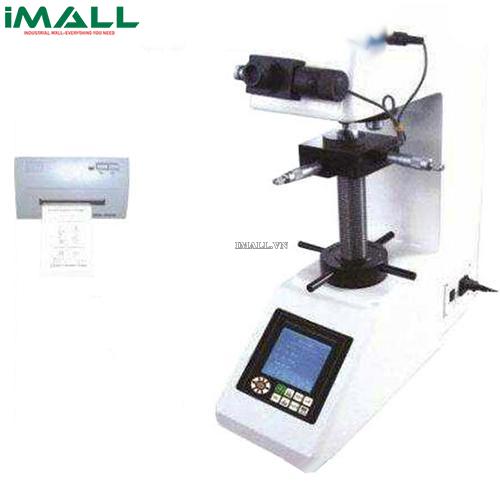

Máy thử độ cứng Vickers HUATEC MHV5

Technical Specifications

• Type
•  MHV-50
• Testing Forces
• N
• 9.807, 19.61, 24.52, 29.42, 49.03, 98.07, 196.1, 249.2, 490.3
• KGF
• 1, 2, 2.5, 3, 5, 10, 20, 30, 50
• Carriage Control
• Automatic(loading/holding-up of loading /unloading)
• Holding Time
•  (0~60)s
• Amplification of the microscope
•  100X, 200X
• Min. graduation value of the test drum wheel
•  0.125um
• Testing field
•  1HV~2967HV
• Lens/Indenter switch
•  With Motorized Turret
• Dimension of the X-Y table
•  Without
• Movement field of the X-Y table
•  Without
• Max. Height of the specimen
•  170mm
• Max. width of the specimen
•  130mm
• Light source
• Cold light source
• Power
•  110V/220V, 60/50HZ
• Objective
• The objective 10^x, 20^x, 40^x can be selected according to user’s requirement
• Standard accessories
•  Largest test table, “V”Shape test table
• 10^X Digital Micro Lens, Level, Adjustable Screw, Vicker Hardness Block, RS232 Interface Line (supply according to modle of instrument)
• Weight
•  Gross weight: 60Kg          Net weight:50Kg

Package Includes
