Product Details
Manufacturer:
KEYSIGHT
Model:
J7201A
Warranty:
Origin:
Authentic
Technical Specifications
- Frequency range: DC to 6 GHz
- Attenuation range: 0 to 121 dB
- Attenuation step size: 1, 5, 10 dB
- Insertion loss: (at 0 dB) 2.5 dB
- Return loss: (VSWR) 14 dB (1.50)
- RF repeatability per section: 0.03 dB typical
- Maximum input power: 1 W (+30 dBm)
- Switching speed: 20 ms
- Operating life 5 million cycles
- Connectivity: GPIB/USB/LAN (LXI Class C)
- Connector type: SMA/Type-N (f)
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

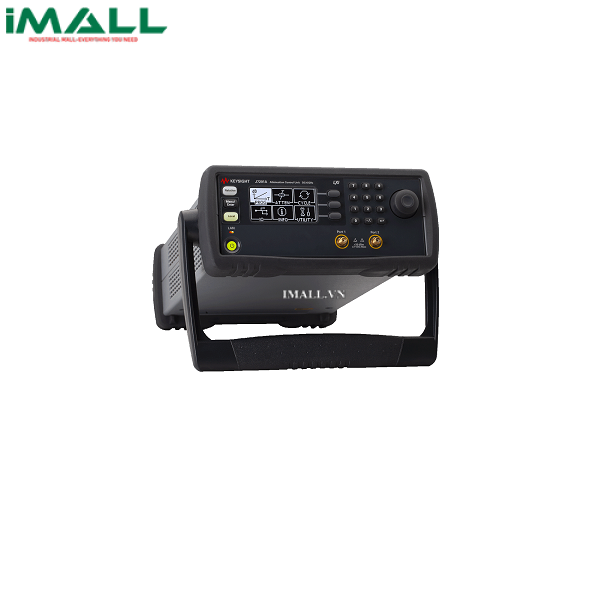

- KEYSIGHT J7201A Attenuation Control Unit (6 GHz)
