Product Details
Manufacturer:
KEYSIGHT
Model:
16196B
Warranty:
Origin:
Malaysia
Technical Specifications
- Description: This test fixture is designed for impedance evaluations of parallel electrode SMDs. It achieves stable frequency characteristics up to 3 GHz and provides highly repeatable measurements. The applicable SMD size code is 0603 (inch)/1608 (mm).
- Applicable instrument: E4982A, E4990A + 42942A*, E4991B, E5061B-3L3/3L4/3L5 with Opt. 005 + 16201A
- * Option E4990A-120 is required
- Frequency: DC to 3 GHz
- Maximum voltage: ±42 V peak max. (AC +DC)
- Size: (1.0 ± 0.1) x (0.5 ± 0.1) x (0.3 to 0.6)
- Operating temperature: –55 to +85°C
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

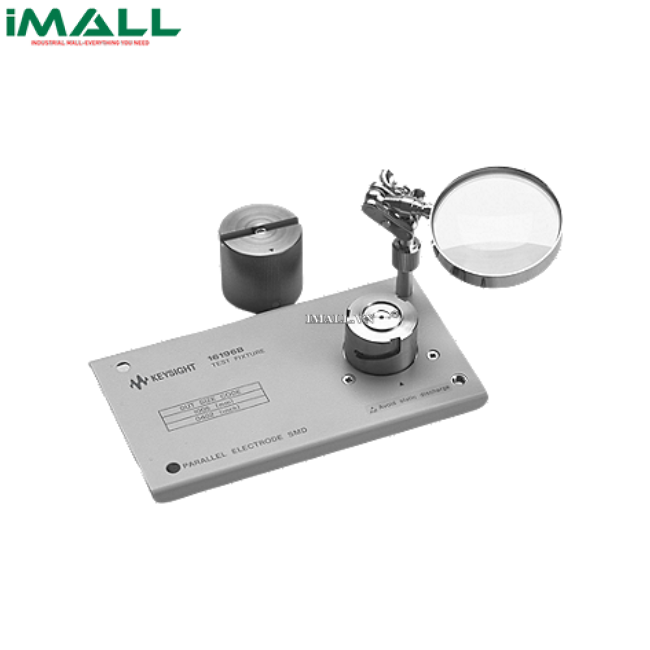

KEYSIGHT 16196B Parallel Electrode SMD Test Fixture, DC to 3 GHz
Perform accurate and repeatable measurements on SMD size of (0.4L ± 0.02) x (0.2W ± 0.02) x (0.11H to 0.22)
