Product Details
Munters
MG50
SWEDEN
Technical Specifications
- Process Air
- Freeblowing at 50Hz (m³/h) 80
- Freeblowing at 60Hz (m³/h) 85
- Rated airflow (m³/h) 50
- Available static pressure 50Hz (Pa) 100
- Available static pressure 60Hz (Pa) 120
- Reactivation air
- Rated airflow (m³/h) 12
- Available static pressure (Pa) 50
- Total power,
- voltage and current (amps/phase)
- Total power(kW) 0,440
- 115V 1-50/60Hz (A) 3,8
- 200V 1-50/60Hz (A) 2,2
- 230V 1-50/60Hz (A) 1,9
- 240V 1-50/60Hz (A) 1,8
- Miscellaneous Data
- Operating temperature (ºC) -20/+40
- Max. noise level, all ducts connected (dbA) 48
- Air filter standard G3
- IEC protective class (unit) IP44
- IEC protective class (electrical panel) IP54
Package Includes
Import Information
0,00
Customs Description

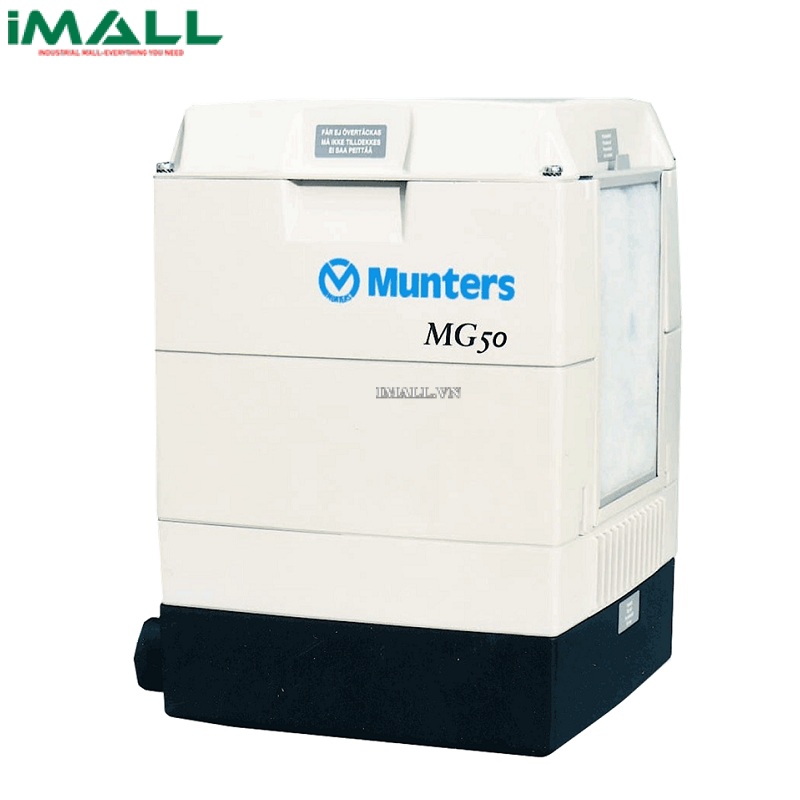

Munters MG50 Dehumidifiers (50m3/h) - Efficiently control humidity levels with the powerful MG50 Dehumidifiers. Perfect for spaces up to 50m3, these dehumidifiers ensure a comfortable and healthy environment. Munters MG50 Dehumidifiers (50m3/h) The MG50 desiccant dehumidifier is designed to efficiently dehumidify air. Its very compact construction incorporates sections held together by four bolts. The fan, desiccant rotor and reactivation heater are secured in fixed positions within their respective sections without utilizing additional attachments. One of the sections contains a distribution chamber with isolated sections that provide a precise balance for dehumidification and reactivation airflows. Its rugged casing is constructed from corrosion resistant die cast aluminium. The electrical control system conforms to EN 60204 (IEC204) standards and the electrical components are assembled in the upper compartment. MG Series dehumidifiers conform to both harmonised European Standards and to CE marking specifications.
