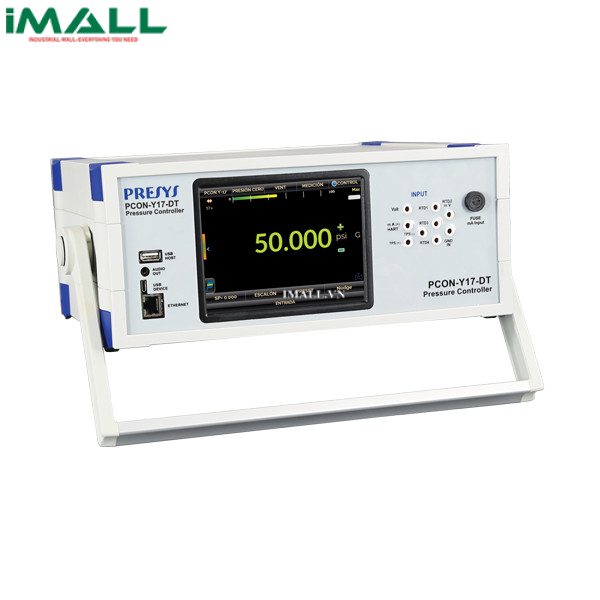

Máy kiểm soát áp suất PRESYS PCON-Y17-DT

Technical Specifications

• 5.7" Touch Screen Color Display. Dual Core 1 GHz processor and Flash memory of 16 GB
• Ethernet, Wi-Fi via USB/Ethernet router adapter, Serial USB with SCPI protocol
• Integrated WebServer, client-server technology to pick-up tasks on remote server
• Host/Device USB port
• Optional HART Communication (CH or FH)
• Pressure switch automatic testing
• Input Current: -1 to 24.5 mA, ± 0.02% FS
• Transmitter Power Supply: 24 Vdc regulated
• Leak test
• Temperature compensated accuracy from 0°C to 50°C
• User selectable pressure unit: Pa, hPa, kPa, MPa, bar, mbar, psi, mmHg@0°C,cmHg@0°C, mHg@0°C,
• inHg@0°C, inH O@4°C, mmH O@4°C, cmH O@4°C, mH O@4°C, mmH O@20°C, cmH O@20°C,  2 2 2 2 2 2
• 2 2 2
• mH O@20°C, kg/m , kg/cm , mtorr, torr, atm, lb/ft 2
• Media: clean gas (air or inert), pressure input  50 %  to 120 % of full scale
• Control speed: 10 s (for 10 % FS pressure increase in a 50 ml test volume)
• Chú ý: xem datasheet để chọn mã hàng và giải áp suất phù hợp

Package Includes
