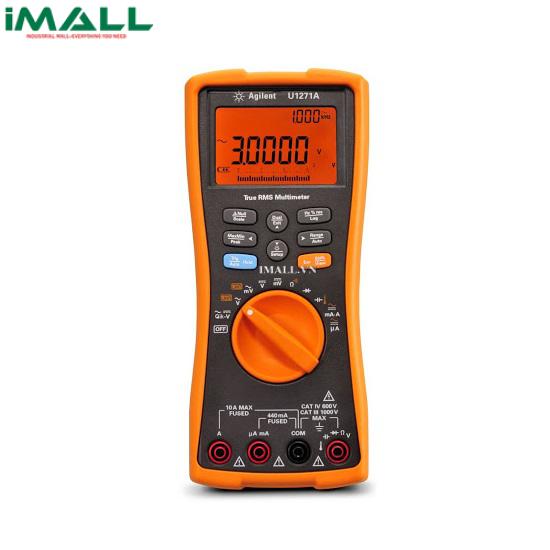

KEYSIGHT U1271A Digital Multimeter

Technical Specifications

• High Resolution
• True RMS AC
• Display resolution 30,000
• AC bandwidth: 20Khz
• Voltage DC:
  • 30.000mV, 300.00mV, 3.000V,
  • 30.000V, 300.001V, 1000.0V/ 0.05%
• Voltage AC (True RMS):
  • 30.000mV, 300.00mV, 3.000V,
  • 30.000V, 300.001V, 1000.0V / 0.7%
• Current DC:
  • 300.00 μA, 3000.00 μA, 30.000 mA, 300.00 mA /0.2%
  • 3.0000 A, 10.000 A /0.3%
• Current AC (True RMS):
  • 300.00μA, 3000.00μA, 30.000 mA, 300.00mA /0.9%
  • 3.0000 A, 10.000 A /1%
• Resistance:
  • 30.000Ω, 300.00Ω, 3.0000kΩ, 30.000kΩ, 300.00 kΩ / 0.2%
  •  3.0000MΩ, 30.000MΩ, 300.00 MΩ, 300.00 nS /0.6%
• Diode: Yes
• Capacitance:
  • 10.000nF, 100.00nF, 1000.0nF, 10.000μF,
  • 100.00μF, 1000.0μF, 10.000mF /1%
• Frequency: 99.999-999.99Hz / 0.05%
• Thermocouple type: J (-200 to 1372oC), K(-210 to 1202oC)/ 1% (Option type J)
• % Sacle 4-20mA: Yes
• Smart Ω: Yes
• Manual data logging: yes
• PC connectivity: IR-USB (option)
• Connectivity: IR-to-Bluetooth (option)
• Dust and water resistant casing: IP 54
• Power supply: 4 pin AAA

Package Includes
