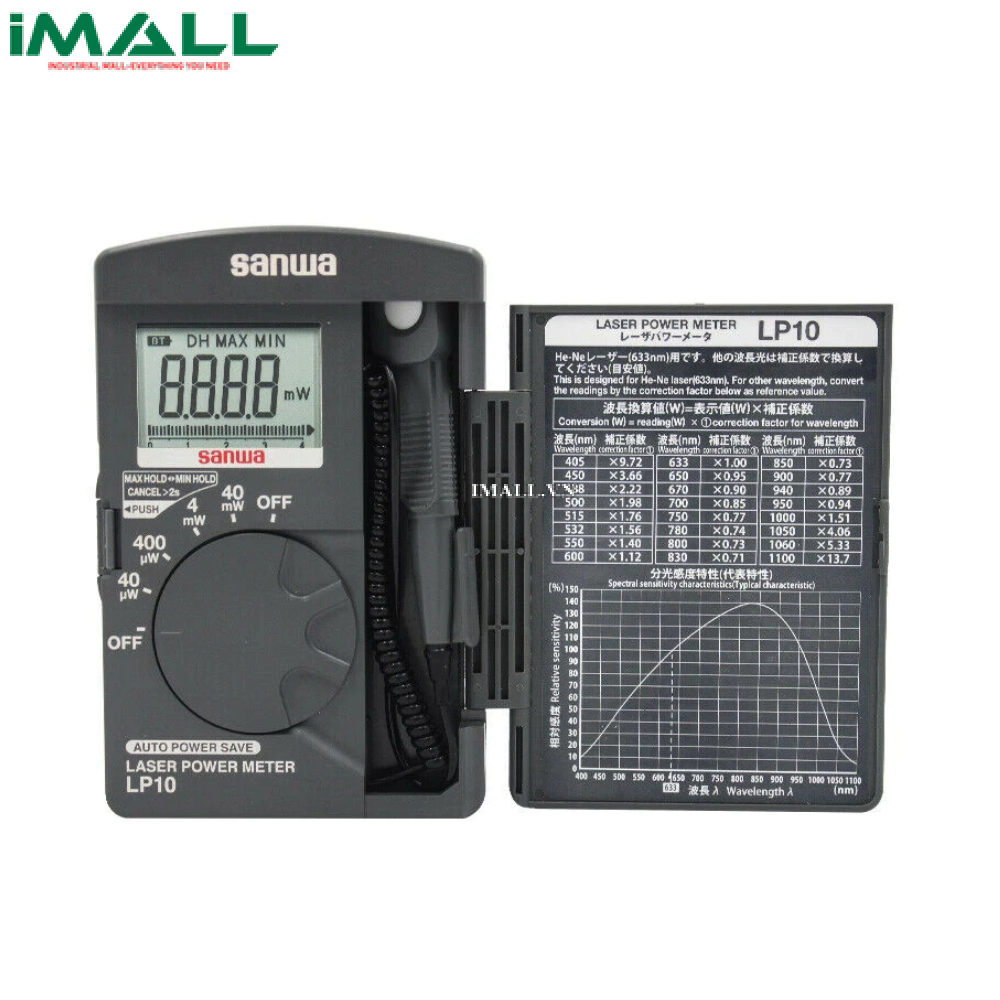

SANWA LP10 Laser Power Meter

Technical Specifications

• Light sensor element: Si photodiode (Light sensor surface diameter Ø9mm) with diffusion sheet
• Measurable wavelength range: 400 nm to 1100 nm
• Directly-readable wavelength:
  • 633 nm(He-Ne laser)
  • Other wavelengths should be converted using typical correction factor
• Display:
  • Digital display: 4039 full scale
  • Bar graph display: 41-segment display
• Sampling rate:
  • Digital display: Approx. 3 times/sec.
  • Bar graph display: Approx. 30 times/sec.
• Ranges:
  • 40 μW range: 0.01 μW to 40.39 μW
  • 400 μW range: 0.1 μW to 403.9 μW
  • 4 mW range: 0.001 mW to 4.039 mW
  • 40 mW range: 0.01 mW to 40.39 mW
• Measured object: CW laser, the modulated laser connot be measured accurately
• Power supply: LR44 1.5V×2
• Light sensor probe: 84(H)×16(W)×10(D) mm
• Sensor cord length: Aprox. 0.5 m when extended
