KEYSIGHT DAQM901A 20 Channel Multiplexer (2/4-wire) Module (for DAQ970A and DAQ973A)

Kết hợp này không tồn tại.

Điều khoản và điều kiện
Hoàn tiền trong 30 ngày
Giao hàng: Từ 2-3 ngày làm việc

Manufacturer:

KEYSIGHT

Model:

DAQM901A

Warranty:

Origin:

CHINA

HS Code:

Estimated Import Tax:

0,00

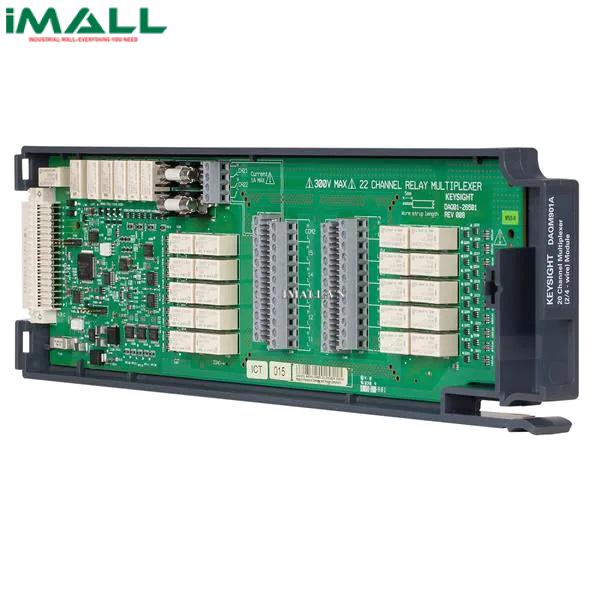

KEYSIGHT DAQM901A 20 Channel Multiplexer (2/4-wire) Module (for DAQ970A and DAQ973A)

20 Channel Multiplexer (2/4-wire) Module. High voltage switching capability of up to 300 V and built-in thermocouple reference junction.
The Keysight DAQM901A module Data Acquisition System is the most versatile multiplexer for general purpose scanning. It combines dense, multi-function switching with 80 channel/second scan rates to address a broad spectrum of data acquisition applications.
Two- and four-wire channels can be mixed on the same module. Two additional fused inputs (22 channels total) route up to 1A of current to the internal DMM, allowing ac and dc current measurements without the need for external shunt resistors.
