Product Details
Manufacturer:
Munters
Model:
MH270
Warranty:
Origin:
SWEDEN
Technical Specifications
- Process air
- Rated airflow (m³/h) 270
- Reduced airflow (m³/h) 185
- Available static pressure (Pa) 190
- Reactivation air
- Reduced airflow (m³/h) 80
- Available static pressure (Pa) 175
- Total power,
- voltage and current (amps/phase)
- Total power(kW) 1,96
- 230V 1-50Hz (A) 8,5
- 240V 1-50Hz (A) 8,5
- Miscellaneous data
- Operating temperature (ºC) -20/+40
- Max noise level unducted (dBA) 53,5
- Air filter standard G3
- IEC protective class (unit) IP44
- IEC protective class (electrical panel) IP54
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

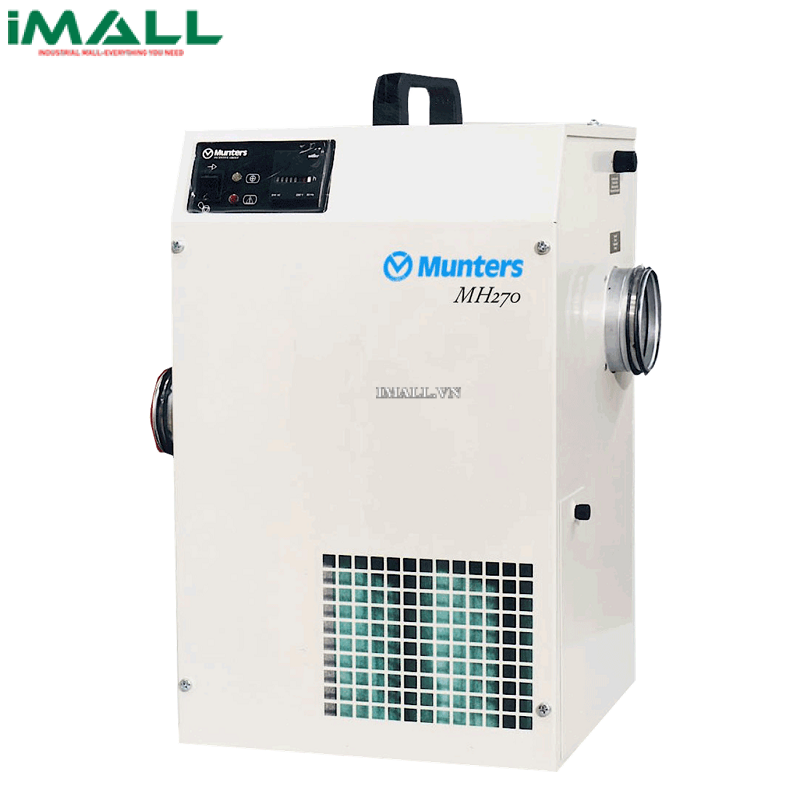

Munters MH270 Dehumidifiers (270m3/h)
The MH270 desiccant dehumidifier is designed to efficiently dehumidify air. It is designed for extended periods of operation and has a common fan for both process and reactivation airflows (i.e. a three hole unit). It contains a distribution chamber with isolated sections that provide a precise balance for dehumidification, purge, reactivation, and heat recovery airflows. It is available with either a standard version or an advanced version control panel. Its rugged formed metal frame and access panels are produced from corrosion resistant ALUZINK®. The electrical control system conforms to EN 60204 (IEC204) standards and the electrical components are assembled behind the control panel. MH Series dehumidifiers conform to both harmonised European Standards and to CE marking specifications.
