EXTECH LCR200 LCR Meter (100kHz)

Kết hợp này không tồn tại.

Điều khoản và điều kiện
Hoàn tiền trong 30 ngày
Giao hàng: Từ 2-3 ngày làm việc

Manufacturer:

EXTECH

Model:

LCR200

Warranty:

Origin:

Taiwan

Cuộn cảm: 20μH, 200μH, 2000.0μH, 20.0000mH, 200.00mH 2000.0H, 20.000H, 200.00H, 2000.0H / ±(0.5%rdg + 5 digits)
Tụ điện: 20pF, 200pF, 2000pF, 20.000nF, 200.00nF, 2000.0nF, 20.000μF, 200.00μF, 2.0000mF, 20.00mF / ±(0.5%rdg + 5 digits)
Điện trở: 20.00Ω, 200.00Ω, 2.0000kΩ, 20.000kΩ, 200.00kΩ, 2.0000MΩ, 20.000MΩ, 200.0MΩ / ±(0.5%rdg + 5 digits)
Tần số test: 100Hz/120Hz/1kHz/10kHz/100kHz

HS Code:

Estimated Import Tax:

0,00

[caption id="_0" align="alignnone" width="600"]

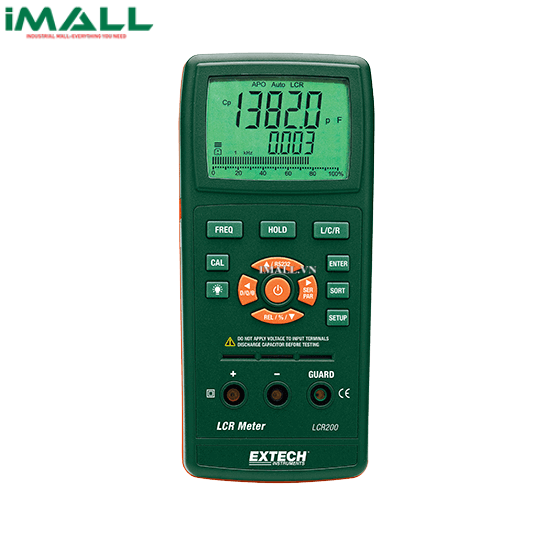

Máy đo LCR Extech LCR200 (100kHz)[/caption]

Simultaneous 20,000/2,000 count backlit display of the primary parameter (L, C or R) with the secondary parameter of Q (quality), D (dissipation) R (resistance), θ(phase), or ESR (equivalent series resistance) • Auto Select measurement function with 1kHz default test frequency • Five test frequencies • Set Hi/Lo limits using absolute values or percentage limits • Relative mode function • Parallel or Series equivalent circuit • Auto power off with disable • Low battery and overrange indicators • Built-in test fixture or use external test leads • Open and Short calibration removes unwanted stray impedances from the measurement • Complete with test leads and 9V battery • Optional SMD Tweezer (LCR203), plug-in SMD

Inductance: 20μH, 200μH, 2000.0μH, 20.0000mH, 200.00mH 2000.0H, 20.000H, 200.00H, 2000.0H / ±(0.5%rdg + 5 digits)
Capacitance: 20pF, 200pF, 2000pF, 20.000nF, 200.00nF, 2000.0nF, 20.000μF, 200.00μF, 2.0000mF, 20.00mF / ±(0.5%rdg + 5 digits)
Resistance: 20.00Ω, 200.00Ω, 2.0000kΩ, 20.000kΩ, 200.00kΩ, 2.0000MΩ, 20.000MΩ, 200.0MΩ / ±(0.5%rdg + 5 digits)
Test Frequency: 100Hz/120Hz/1kHz/10kHz/100kHz
Dimensions: 7.6 x 3.5 x 1.6” (193 x 88 x 41mm)
Weight: 14.8oz (420g)
Complete with test leads and 9V battery
