Product Details
Manufacturer:
UNI-T
Model:
UT233
Warranty:
Origin:
CHINA
Technical Specifications
- AC (A): 1000A ±(2%+5)
- AC (V): 600V ±(1.2%+5)
- Tần số (Hz): 20Hz~500Hz, ±(0.5%+5)
- Công suất thuần (W): 0.01kW~600kW ±(3%+5)
- Công suất biểu kiến (VA): 0.01kVA~600kVA ±(3%+5)
- Công suất phản kháng (VAr): 0.01kVAr~600kVAr ±(4%+5)
- Hệ số công suất: 0.3~1 ±0.022
- Góc pha (°): 0°~360° ±1°
- Điện năng (Wh): 1kWh~9999kWh ±(3%+2)
- Hiển thị đếm: 10000
- Tự động chọn dải: Có
- Độ mở kìm: 50mm
- True RMS: Điện áp AC/Dòng điện AC
- Tự động tắt: Có
- Chỉ báo pin yếu: Có
- Giữ dữ liệu: Có
- MAX/MIN: Có
- Bộ nhớ: 99
- Giao tiếp USB: Có
- Đèn nền LCD: Có
- Hiển thị đầy đủ biểu tượng: Có
- Một pha hai dây: Có
- Ba pha ba dây: Có
- Ba pha bốn dây: Có
- Kiểm tra thứ tự pha: Pha thuận, Pha nghịch, thiếu pha
- Tổng trở vào (DCV): ≥5MΩ
- Nguồn điện: Pin 1.5V (R6) x 4
- Màn hình: 46mm x 42mm
- Màu máy: Đỏ và xám
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

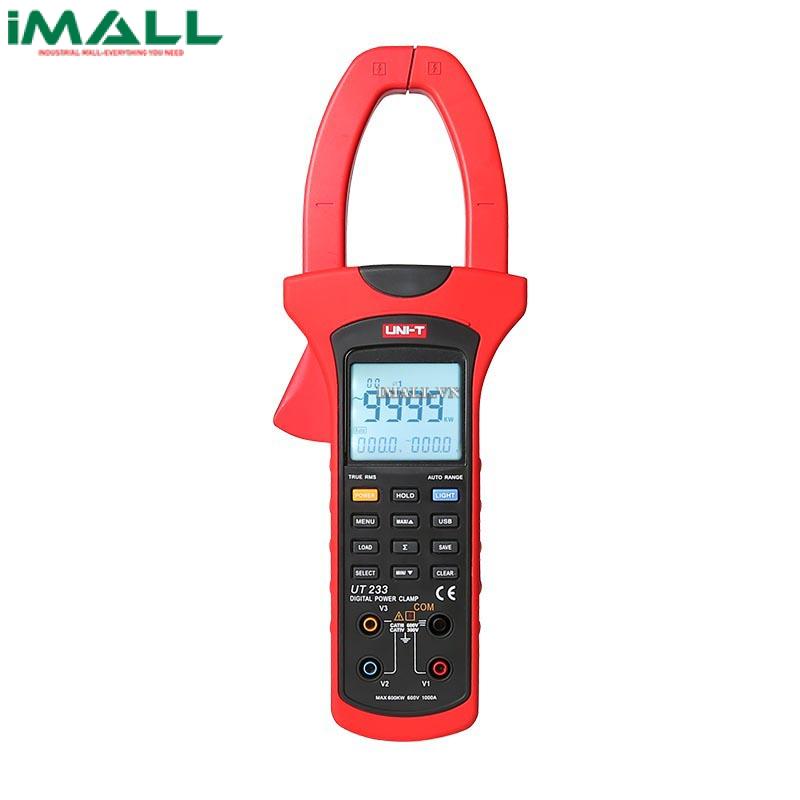

UNI-T UT233 Digital Power Clamp Meter (Discontinued)
UT233 is an intelligent, handheld and stable power and harmonics clamp meter, with functions of digital ammeter and power meter. It can measure voltage, current, active/reactive power, power factor, phase angle and more.
UNI-T UT233 Digital Power Clamp Meter (Discontinued)
Certificates: CE, RoHS
● 999-group data storage; single/continuous recording and data recall available
● True RMS voltage/current measurement
● 3-phase 3-wire, 3-phase 4-wire and single-phase 2-wire measurements
● 10000 count LCD dual display
● Adjustable sampling rate
● Max/Min modes
● Auto range, auto power off, backlight, low battery indication
● Equipped with USB interface and PC software CD
