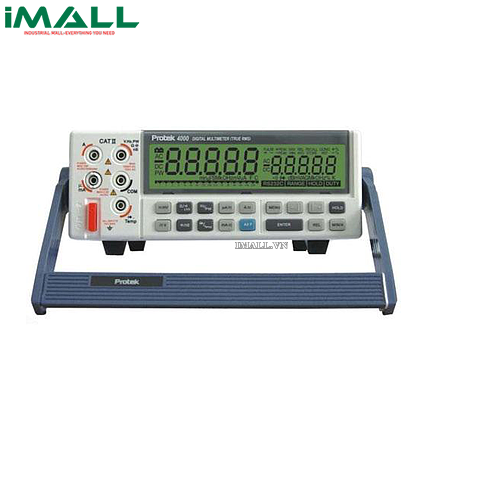

Đồng hồ vạn năng để bàn Protek 4000

Technical Specifications

•  DC/V : 500 mV, 2500 mV,5 V, 50 V, 500 V, 1000 V
•   Accuracy : ±0.05% + 5d
•  AC/V : 500 mV,5 V, 50 V, 500 V, 750 V
•   Accuracy:    ±0.75% + 20d
• AC + DC/V:500 mV,5 V, 50 V, 500 V, 750 V
•   Accuracy : ±1.5% + 50d     2% ± 50d
• DC/A :  5000 μA, 500 mA, 10 A
•   Accuracy : 0.2% + 5d, 0.5% + 5d
•  SHUNT : 100 ohm     1 ohm     10M ohm
•  AC/A : 5000 μA,500 mA,10 A
•  Tần số : 50 HKz to 1 kHz
•   Accuracy : 0.75% ±
•  AC + DC/A :5000 μA, 500 mA, 10 A
•  Tần số : DC to 1kHz
•  Accuracy : 1.5% + 50d
•  Ω : 50 ohm, 5k, 50k, 500k, 5M     50M
•  Accuracy :1% + 20d
•  LV Ω  :  5k, 50k, 500k, 5M,50M
•   Accuracy 0.5% + 5d     2.5% + 10d
•  nS :     500 nS
•   Accuracy : 3% + 5d
•  Liên tục : 5k ohm,50k ohm,500k ohm,5M ohm
•  Zener Diode : 15V
•   Accuracy :    5% + 10d
•   Current :    1mA
•   Open Volt :      15 to 22V
•  Tụ điện :5nF,50nF,500nF,5μF,50μF,500μF,5mF
•   Accuracy :5% + 10d ,2% + 10d,    2% + 5d,3% + 10d     -
•  Tần số : 50 Hz,500 Hz,50k Hz,500k Hz,5k Hz
•   Accuracy     0.01% + 5D
•  Pulse Width : 200 ms
•   Accuracy :    0.1% + 5d
•  Duty Cycle :100%
•   Accuracy : 0.1% + 5d
• Nhiệt độ :-20 - 0°C, 0 - 150°C, 150 - 1200°C
• Giao tiếp 232
•  Nguồn cấp : AC 220V 50Hz

Package Includes
