Product Details
Manufacturer:
ABB
Model:
OTM63F3C20D400C
Warranty:
Origin:
Trung Quốc
Technical Specifications
- Rated Operational Current AC-21A (Ie):(380 ... 415 V) 63 A
- Rated Operational Current AC-22A (Ie):(380 ... 415 V) 63 A
- Rated Operational Current AC-23A (Ie):(380 ... 415 V) 63 A
- Rated Operational Current AC-31B (Ie):(380 ... 415 V) 63 A
- Rated Operational Current AC-32B (Ie):(380 ... 415 V) 63 A
- Rated Operational Current AC-33B (Ie):(380 ... 415 V) 63 A
- Rated Operational Power AC-23A (Pe):(380 ... 415 V) 30 kW
- Conventional Free-air Thermal Current (Ith):q = 40 °C 63 A
- Rated Impulse Withstand Voltage (Uimp):8 kV
- Rated Insulation Voltage (Ui):800 V
- Rated Operational Voltage:380…415 V AC
- Rated Short-time Withstand Current Low Voltage (Icw):for 1 s 2.5 kiloampere rms
- Motor Operational Voltage:380…415 V AC
- Power Loss:2.8 W
- Pollution Degree:3
- Handle Type:Direct mounted handle
- Fourth Pole Type:Switched - Simultaneous Function
- Position of Line Terminals:Supplies on Top - Load on Bottom
- Controller Type:20D
- Number of Poles:3
- Degree of Protection:Front IP20
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

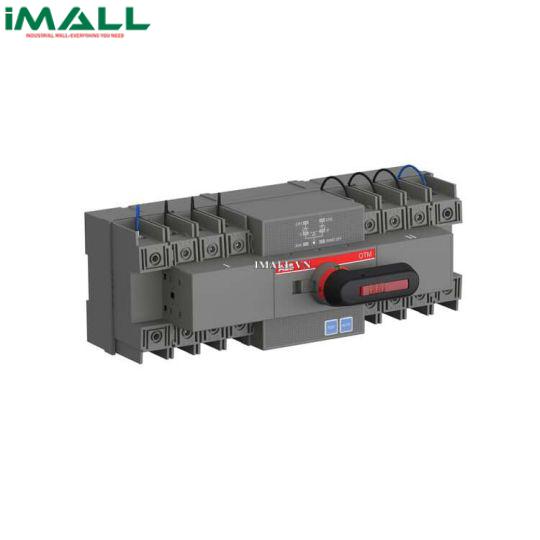

Bộ chuyển nguồn ABB OTM63F3C20D400C (1SCA151423R1001) 63A
