Product Details
Manufacturer:
Model:
MTG4
Warranty:
Origin:
Anh
Technical Specifications
- Material measuring: Aluminium, steel, stainless steel, cast iron, plexiglass, PVC, polystyrene and polyurethane.
- Tough, impact, waterproof and dust resistant equivalent to IP54
- Measurement Mode: Pulsed-Echo (P-E), Echo-Echo ThruPaint™ (E-E) measurement Mode
- Measurement Rate: 4Hz
- Range:
- Pulsed-Echo P-E: 0.63-500mm (0.025-20")
- Echo-Echo ThruPaint™ E-E: 2.54 - 25.40mm (0.100-0.787")
- Accuracy:
- Pulsed-Echo P-E: ±0.1mm (0.63-19.99mm); ±0.5% (20.00-500.00mm); ±0.004" (0.025-0.787"); ±0.5% (0.788-20.00");
- Echo-Echo ThruPaint™ E-E: ±0.1mm (2.54-20.00mm): ±0.004" (0.100-0.787")
- Measurement Units: mm or inch
- Selectable Reading Resolution: Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs
- Data Output: USB; to PC
- Transducer Probe Type: Dual element
- Battery Type: 2xAA
- Battery Life: Alkaline: 15 hour, Lithium: 28 hour
- Operating Temperature: -10 to 50°C
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

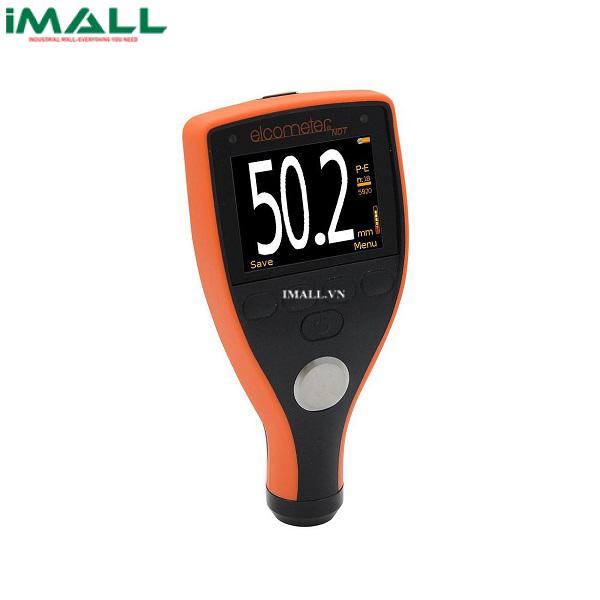

- ELCOMETER MTG4 Material Thickness Gauge (0.63-500mm)
