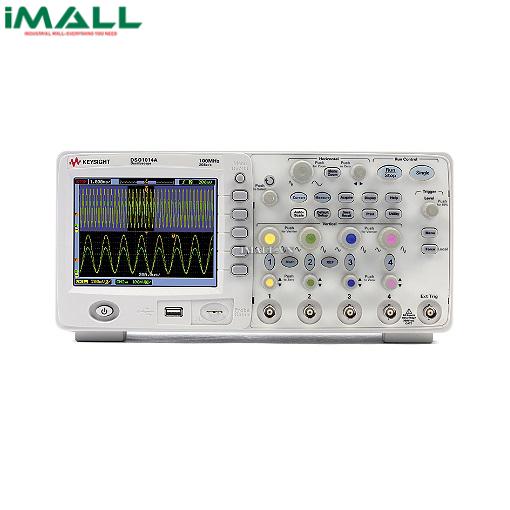

Technical Specifications

• Bandwidth (-3dB): DC to 100 MHz
• Real-time sample rate: 2 GSa/sec half channel interleaved, 1 GSa/sec all channel
• Memory depth: 20 kpts half channel interleaved, 8 kpts all channels
• Channels: 4
• Vertical resolution: 8 bits
• Vertical sensitivity (range): 2 mV/div to 10 V/div
• DC gain accuracy: 2 mV/div to 5 mV/div: 4.0% full scale
•                              10 mV/div to 10 V/div:  3.0% full scale
• Vertical zoom: Vertical expand
• Maximum input voltage: CAT I 300 Vrms, 400 Vpk; transient overvoltage 1.6kVpk
• Horizontal modes: Main (Y-T), XY, delayed zoom and roll
• Input coupling: DC, AC and ground
• Input impedance: 1 MΩ 2% in parallel with 15 pF
• Time scale accuracy: 50 ppm over 1 ms
• Acquisition modes: Normal, Averaging, Sequence, Peak detect, Roll
• Trigger coupling: AC, DC, LF reject, HF reject
• Trigger modes: Force, Edge, Video, Pulse width, Alternate
• Trigger sensitivity:
  •     ≥5 mV/div: 1 div from DC to 10 MHz, 1.5 div from 10 MHz to full bandwidth
  •     <5 mv="" div:="" 1="" div="" from="" dc="" to="" 10="" mhz="" 1="" 5="" div="" from="" 10="" mhz="" to="" 20="" mhz="" span="">
• Auto measurement: Voltage, Time, frequency Counter
• Math functions: A+B, A-B, AxB, FFT
• AutoScale: yes
• Display: 5.7 inch, color QVGA TFT LCD
• Save/Recall internal: 10 setups and 10 waveforms
• Standard ports: USB 2.0 full-speed up to 12 Mb/sec
