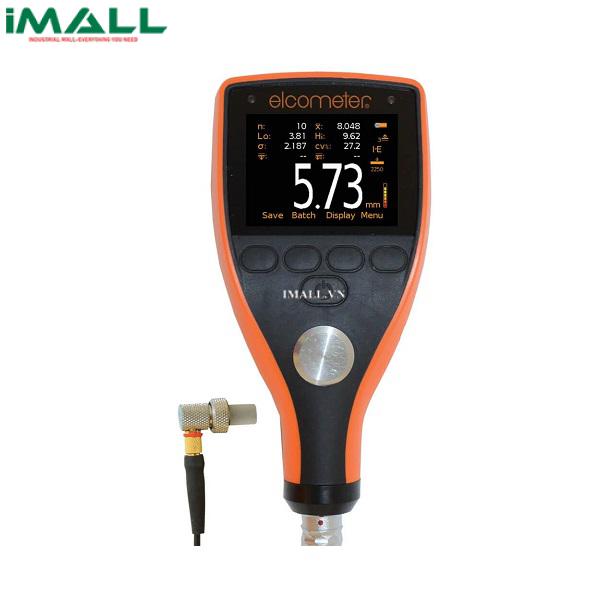

ELCOMETER C307CDL Ultrasonic Precision Thickness Gauge (0.15~25.4mm, IP54, bluetooth)

Technical Specifications

• Transducer Probe type: Single Element
• Measurement & Thickness range
  • Interface Echo (IE): 1.65 - 25.40mm
  • Echo Echo (EE): 0.15 - 10.15mm
  • Plastic Mode (PLAS): 0.15 - 5.00mm
• Measurement Accuracy: ±1% or 0.015mm (0.001”) - whichever is the greater
• Resolution: 0.1mm (0.01”) or 0.01mm switchable
• Measurement Rate: 4, 8 & 16Hz (4, 8 & 16 readings per second)
• Operating Temperature: -10 to 50°C
• Data Output: USB & Bluetooth
• Power Supply: 2 x AA batteries
• Battery Life 2  Alkaline: Approx. 15 hours  Lithium: Approx. 28 hours

Package Includes
