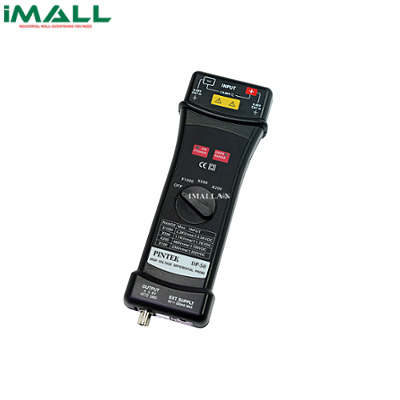

Que đo vi sai Pintek DP-50 ( 6.5KVp-p / 50MHz )

Technical Specifications

• Differential Voltage DC + pk AC: 6500V
• Bandwidth ( 50 Ω load -3dB ): 50MHz( x 100 25MHz)
• Common Mode Voltage DC + pk AC: 6500V
• Common Mode Voltage RMS CAT II: 6500V
• Common Mode Voltage RMS CAT IIIl: 6500V
• Attenuation ( Switchable ):X 100, X 200, X 500, X 1000
• Input R ( Each input ): 27MΩ±1%
• Input C ( Each input ): 2.5 PF ± 2% 2
• Maximum Operation Voltage( DC + pk AC )
  • ≦ ± 650V at X 100
  • ≦ ± 1300V at X 200
  • ≦ ± 3250V at X 500
  • ≦ ± 6500V at X 1000
• Common Mode Rejection Ration( C M R R )
  • 60 Hz : > 10,000 : 1
  • 100 Hz : > 1,000 : 1
  • 1 MHz : > 300 : 1
• Noise ( Into 50Ω load ): ≦ 2 m Vrms
• Input Impedance ( between input): 54 MΩ // 1.25 PF >
• Accuracy ( at 20 ~ 30℃ 70% RH after 20 minutes ): ≦ ± 2 %
• Maximum Output Voltage: ≦ ± 6.5 V
• POWER SOURCE: External 6V ~ 9V DC
