Product Details
Manufacturer:
ABB
Model:
OS200D03P
Warranty:
Origin:
-
Technical Specifications
- Rated Operational Current AC-21A (Ie):
- (500 V) 200 A
- (690 V) 200 A
- Rated Operational Current AC-22A (Ie):
- (380 ... 415 V) 200 A
- (500 V) 200 A
- (690 V) 200 A
- Rated Operational Current AC-23A (Ie):
- (380 ... 415 V) 200 A
- (500 V) 200 A
- (690 V) 200 A
- Rated Operational Power AC-23A (Pe):
- (220 ... 240 V) 60 kW
- (400 V) 110 kW
- (415 V) 110 kW
- (500 V) 132 kW
- (690 V) 200 kW
- Conventional Free-air Thermal Current (Ith):q = 40 °C 200 A
- Conventional Thermal Current (Ithe):Fully Enclosed 200 A
- Rated Impulse Withstand Voltage (Uimp):12 kV
- Rated Insulation Voltage (Ui):1000 V
- Rated Operational Voltage:Main Circuit 690 V AC
- Rated Short-time Withstand Current Low Voltage (Icw):for 1 s 2.5 kiloampere rms
- Rated Conditional Short-Circuit Current (Inc):(690 V) 80 kA
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

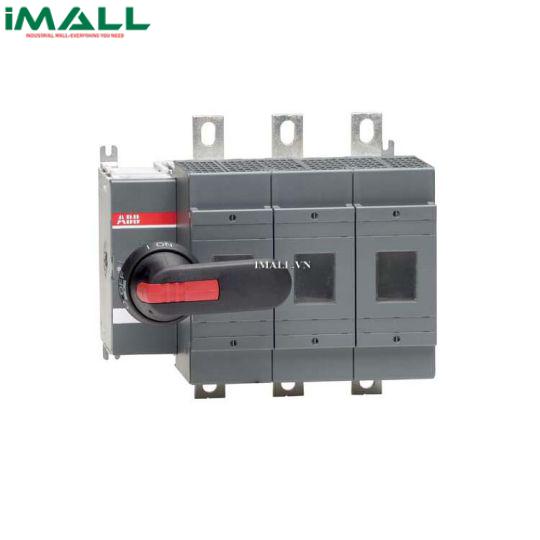

Cầu dao cắt tải ABB OS200D03P (1SCA022709R9500)
