Product Details
Manufacturer:
GW INSTEK
Model:
GDM-8342
Warranty:
Origin:
Trung Quốc
Technical Specifications
- DCV: 500mV, 5V, 50V, 500V, 1000V/10μV, 100μV, 1mV, 10mV, 100mV/ 0.02%
- Ω: 500Ω, 5kΩ, 50kΩ, 500kΩ, 5MΩ, 50MΩ/ 10mΩ, 100mΩ, 1Ω, 10Ω, 100Ω, 1kΩ/0.1%
- DCA: 500μA, 5mA, 50mA, 500mA, 5A, 10A/ 10nA, 100nA, 1μA, 10μA, 100μA, 1mA/ 0.05%
- Diode test: 5V/ 100μV/0.05%
- C: 5nF: 0.5~1nF/0.001nF/2%
- 50nF: 5~10nF/0.01nF/2%
- 500nF/0.1nF/2%
- 5μF/1nF/2%
- 50μF/10nF/2%True RMS ACV(or AC+DC): 500mV, 5V, 50V, 500V, 750V/10μV, 100μV, 1mV, 10mV, 100mV.
- True RMS ACA(or AC+DC): 500μA, 5mA, 50mA, 500mA, 5A, 10A/ 10nA, 100nA, 1μA, 10μA, 100μA, 1mA.
- f: 1MHz/ 0.01%
- Nhiệt độ: -200 °C ~ +300 °C/0.1 °C
- Màn hình: VFD, 2 màu.
- Giao tiếp: USB Device, USB Host , GPIB (optional )
- Nguồn điện: AC 100 V / 120 V / 220 V / 240 V ±10%, 50-60Hz
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

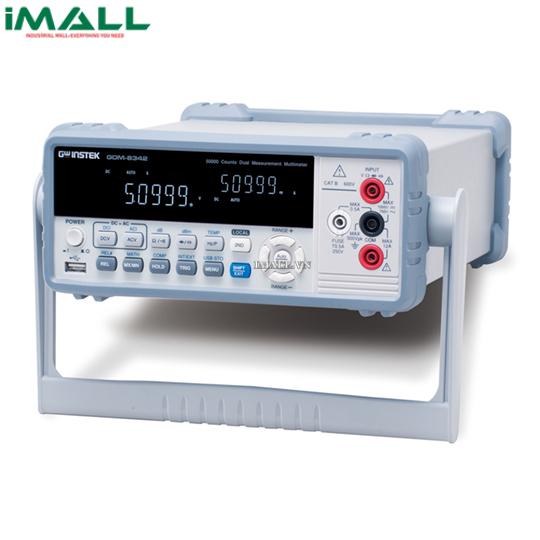

Đồng hồ vạn năng để bàn GW INSTEK GDM-8342
