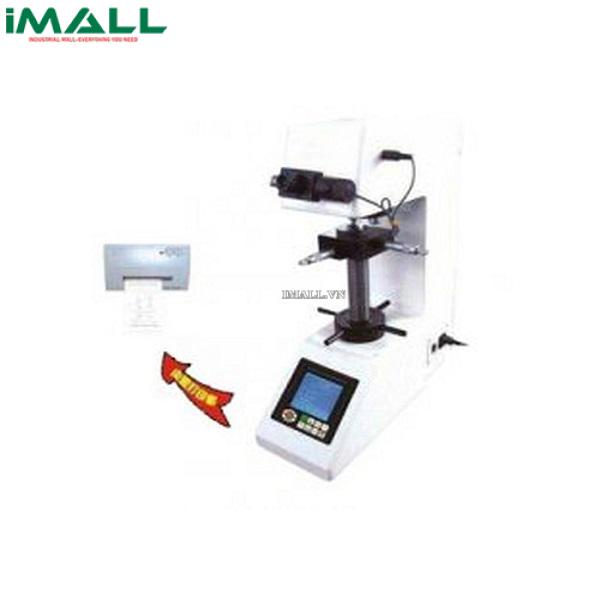

Máy thử độ cứng Vickers HUATEC MHV-30

Technical Specifications

• Type: MHV-30
• Testing Forces:
  • N:4.903, 9.807, 19.61, 24.52, 29.42, 49.03, 98.07, 196.1, 294.2
  • KGF:0.5, 1, 2, 2.5, 3, 5, 10, 20, 30
• Carriage Control:Automatic(loading/holding-up of loading /unloading)
• Holding Time: (0~60)s
• Amplification of the microscope: 100X, 400X
•  100X, 200X
• Min. graduation value of the test drum wheel:
  • 0.0625um
  • 0.125um
• Testing field: 1HV~2967HV
• Lens/Indenter switch: With Motorized Turret
• Dimension of the X-Y table: Without
• Movement field of the X-Y table: Without
• Max. Height of the specimen: 170mm
• Max. width of the specimen: 130mm
• Light source:Cold light source
• Power: 110V/220V, 60/50HZ
• Objective:The objective 10^x, 20^x, 40^x can be selected according to user’s requirement
• Standard accessories:X
•  Largest test table, “V”Shape test table
• :10^X Digital Micro Lens, Level, Adjustable Screw, Vicker Hardness Block, RS232 Interface Line (supply according to modle of instrument)
• Dimension: 535X225X580mm
• Weight: Gross weight: 60Kg          Net weight:50Kg

Package Includes
