Product Details
Manufacturer:
ABB
Model:
432EC3
Warranty:
Origin:
Cộng hoà Séc
Technical Specifications
- Additional Information: 3P+N+E
- Ambient Temperature: -25 ... 40 °C
- Cable Cross-Section: 2.5 ... 6 mm²
- Cable Diameter: 22 mm
- Cable Entry Position: Swivel
- Color: Red
- Connection Type: Screw
- Degree of Protection: IP44
- Frequency (f): 50/60 Hz
- Function: Connector
- Housing Material: Plastic (PA)
- Invoice Description: Ind. P&S#432EC3
- Number of Poles: 5
- Order Multiple: 10 piece
- Product Main Type: EC
- Product Name: Industrial Connector
- Protection Type: Splashproof
- Rated Current (In): 32 A
- Rated Voltage (Ur): 220/380 ... 250/440 V
- Recommended Screw Driver: PH2
- Standards: IEC 60309-1, -2
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

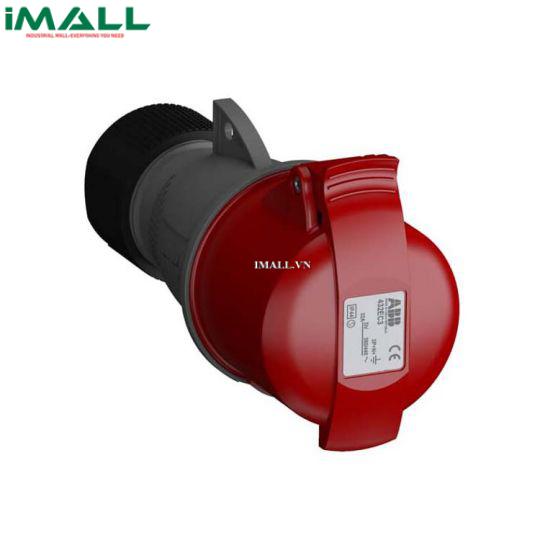

Ổ cắm công nghiệp ABB 432EC3 (2CMA102048R1000)
