Product Details
Manufacturer:
KEYSIGHT
Model:
M9709A
Warranty:
Origin:
Authentic
Technical Specifications
- ADC resolution: 8-bit
- Number of channels: 32
- Impedance: 50 Ω ± 2 %
- Maximum input voltage ± 5 V
- Sampling rate: 1 GS/s
- Input frequency range: DC up to 500 MHz (with -F05 option)
- Memory: Up to 16 GB (512 MSamples/ch)
- Full scale ranges (FSR): 250 mV, 500 mV, 1 V, 2.5 V, and 5 V
- Operating temperature range: 0 to +40°C
- Non-operating temperature range: -40 to +70°C
- Operating system: Windows and Linux
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

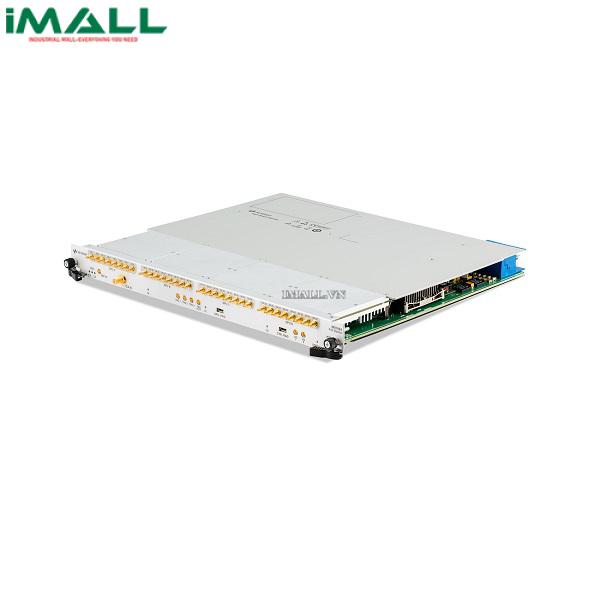

- KEYSIGHT M9709A AXIe High-Speed Digitizer/DAQ (8-bit, 1 GS/s, 32-ch)
