Product Details
Manufacturer:
KEYSIGHT
Model:
E8267D
Warranty:
Origin:
Authentic
Technical Specifications
- Frequency range (min. to max.): 100 kHz to 44 GHz
- Frequency switching (list mode): 9 ms
- Sweep mode: Step, list, ramp
- Output power (at 20 GHz): –135 to +26 dBm
- Level accuracy (at 20 GHz): ± 0.8 dB
- SSB phase noise (at 10 GHz; 10 kHz offset): –126 dBc/Hz
- Harmonics (at 10 GHz): –55 dBc
- Non-harmonics (at 1 GHz): –88 dBc
- AM rate: DC to 100 kHz
- FM deviation (maximum): 1 to 800 rad
- PM phase deviation (maximum in normal mode): 0.5 to 64 rad
- Narrow pulse width: 20 ns
- EVM (LTE): 0.8%
- ACPR (16QAM,10 GHz): –64 dBc
- Internal baseband generator RF BW: 80 MHz
- External I/Q modulator RF BW: Up to 4 GHz
- Waveform playback memory: 64 Msa
- Baseband generator mode: Waveform playback and real-time IQ
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

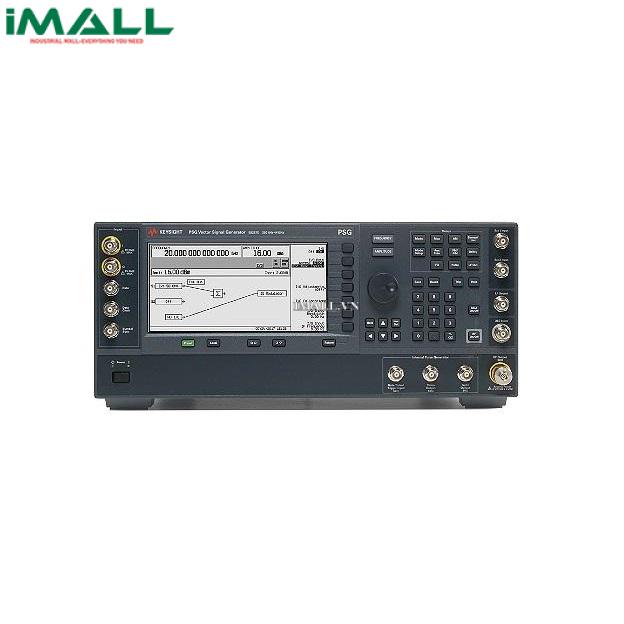

- KEYSIGHT E8267D PSG Vector Signal Generator (100kHz~44GHz)
