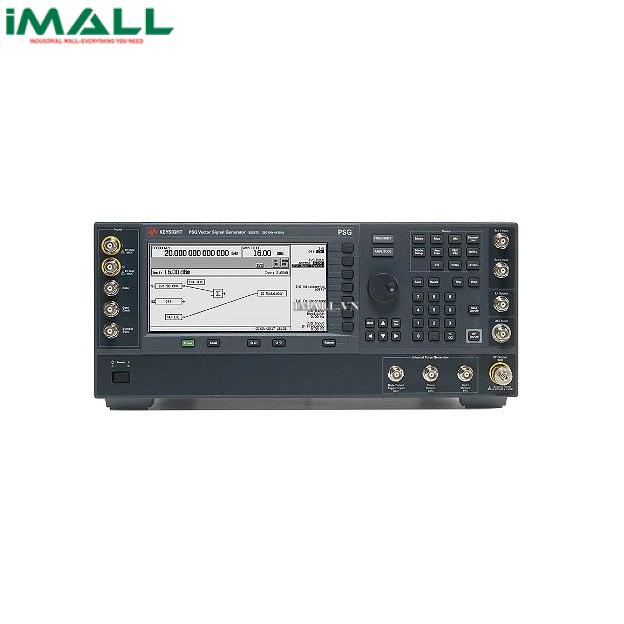

Máy phát tín hiệu vector PSG KEYSIGHT E8267D (100kHz~44GHz)

Technical Specifications

• Frequency range (min. to max.): 100 kHz to 44 GHz
• Frequency switching (list mode): 9 ms
• Sweep mode: Step, list, ramp
• Output power (at 20 GHz): –135 to +26 dBm
• Level accuracy (at 20 GHz): ± 0.8 dB
• SSB phase noise (at 10 GHz; 10 kHz offset): –126 dBc/Hz
• Harmonics (at 10 GHz): –55 dBc
• Non-harmonics (at 1 GHz): –88 dBc
• AM rate: DC to 100 kHz
• FM deviation (maximum): 1 to 800 rad
• PM phase deviation (maximum in normal mode): 0.5 to 64 rad
• Narrow pulse width: 20 ns
• EVM (LTE): 0.8%
• ACPR (16QAM,10 GHz): –64 dBc
• Internal baseband generator RF BW: 80 MHz
• External I/Q modulator RF BW: Up to 4 GHz
• Waveform playback memory: 64 Msa
• Baseband generator mode: Waveform playback and real-time IQ
