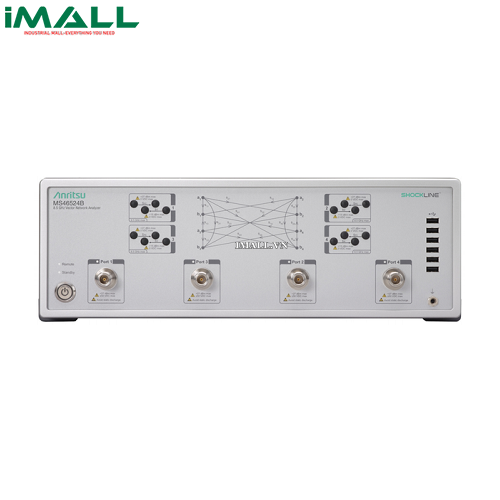

Máy phân tích mạng Vector Anritsu MS46524B (4 port, 50 kHz — 8.5 GHz)

Technical Specifications

• Simultaneous sweep captures all S-parameters in one sweep, increasing production throughput
• Simple signal integrity testing of passive multiport and differential devices
• Industry leading dynamic range enables measurement of very low reflection artifacts
• Excellent corrected directivity minimizes measurement uncertainty
• SmartCal auto calibration unit reduces calibration and setup time
• Time domain with time gating option enables TDR-like measurements
• Modern LAN interface for remote control is faster than GPIB
• A common GUI and SCPI interface within the Shockline Family
• The compact 3U high chassis allows for the efficient use of rack space
• The MS46524B is a series of 4-port Performance ShockLine Vector Network Analyzers. Delivering an unprecedented level of value and performance, including best-in-class dynamic range, the Performance series lowers cost-of-test and speeds time to market in numerous testing applications up to 8.5 GHz. These applications include designing and manufacturing multi-port mobile network equipment, mobile devices, automotive cables, high-speed data interconnects and system integration components.
• The MS46524B has modern architecture featuring 4 independent sources and 8 receivers. It has a unique sweep capability called Simultaneous Sweep, which allows the four independent sources to sweep at the same time resulting in the measurement of forward and reverse S-parameters in a single sweep! Therefore, it takes one-quarter the time of a traditional sweep to make a full 4-port measurement.
• The MS46524B series comes in a 3U high chassis and uses the same GUI, software, command syntax, drivers, and programming environments as the rest of the ShockLine family.
• Applications:
• Differential Devices
  • Cables
  • Connectors
  • PCBs
• Mobile
  • UE – micro coaxial RF connectors
  • UE – antennas, switches, diplexers
• General Purpose
• Passive multi-port component testing
  • Connectors
  • Cables
  • Electromechanical
  • Switches
  • Attenuators
  • Couplers
  • Filters
  • Isolators
  • Circulators
• System Integration Applications
  • System calibration
  • Differential path-loss characterization
  • General multi-port s-parameter and time domain measurements
• Frequency Option
• Option Description
  • MS46524B-010
• Description
  • 50kHz — 8.5 GHz
• Other Options
• Option Description
  • MS46524B-001
  • MS46524B-002
• Description
  • Rack mount, adds handles and removes feet for shelf-mounting into a 19 in. universal rack
  • Time domain with time gating
