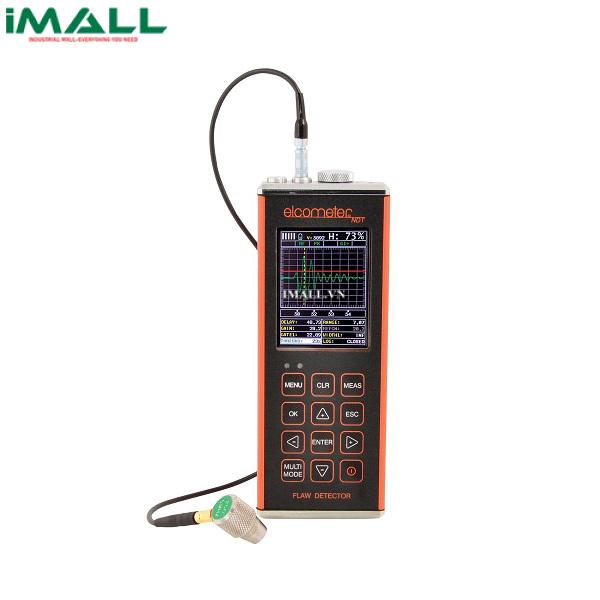

Elcometer FD700 Mini Flaw Detectors (0.01~30480mm, A/B-scan, Thrupaint, datalogging, RS232, Broadband)
Product Details
Manufacturer:
Model:
FD700
Warranty:
Origin:
Anh
Technical Specifications
- A-Scan display: + Rectified, - Rectified, Full Waveform (RF)
- Flaw detection modes: TRIG, DAC, AWS, TCG, Zero Crossing, Flank, Peak
- Measurement Mode: PE, PETP (Temp Compensation), EE (ThruPaint™), EEV, CT (Coating) & PECT
- Measurement Rate (Thickness Mode)
- Manual: 4 readings per second
- Scan mode: 32 readings per second
- Scan bar display: 6 readings per second
- Measuring Range: PE: 0.63 - 30480mm, PETP: 0.63 - 30480mm, EE: 1.27 - 102mm, EEV: 1.27 - 25.4mm, CT: 0.01 - 2.54mm, PECT: 0.63 - 30480mm, PECT: 0.01 - 2.54mm
- Measurement Accuracy2: ± 1% or ±0.1mm whichever is the greater
- Measurement Resolution: 0.01mm (0.001 inch)
- Velocity Calibration Range: 256 - 16,000m/s (0.0100 - 0.6300in/ms)
- Data logging: 8,000 with A/B-scan image & gauge settings; 210,000 - coating, material, min, max thickness
- Frequency Bands: Broadband 1.8 - 19 MHz
- Battery Type: 3 x AA alkaline
- Battery Life: 12 hours
- Transducer Connector Type: LEMO
- RS232 Interface: Bi-directional
