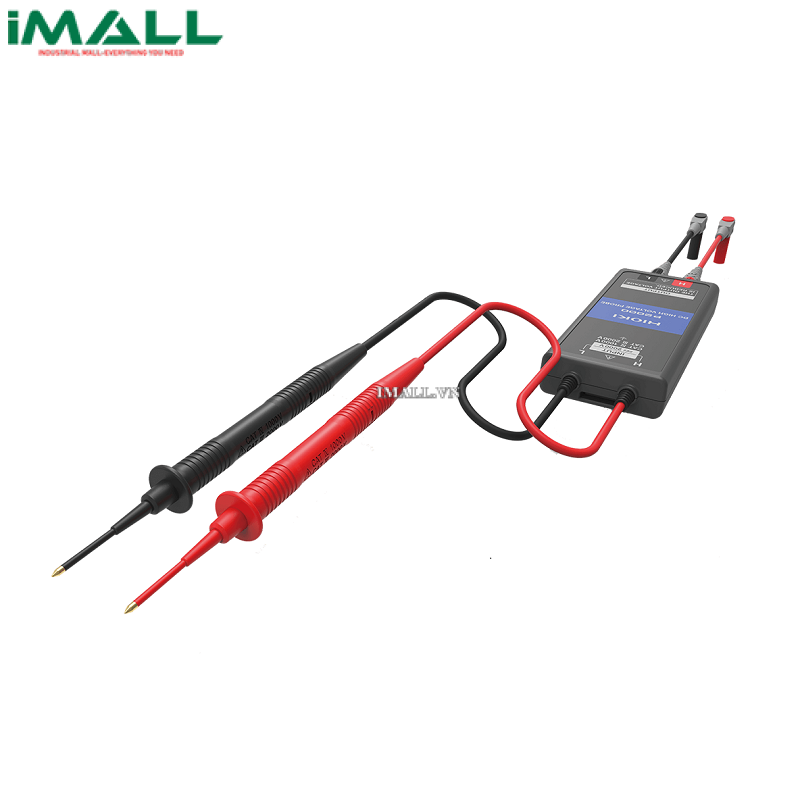

Que đo cao áp HIOKI P2000 (DC 2000V)

Technical Specifications

• Maximum input voltage (*1): DC 2000 V
• Maximum rated line-to-ground voltage
  • 1000 V (Measurement Category IV), Anticipated transient overvoltage 12000 V
  • 2000 V (Measurement Category III), Anticipated transient overvoltage 15000 V
• Input resistance 20 MΩ ±5.0% (between INPUT H and INPUT L, when OUTPUT terminal is open)
• Overload protection
  • 2200 V DC/2200 V AC (applied for 1 minute) (between INPUT H and INPUT L)
  • 600 V DC/600 V AC (applied for 1 minute) (between OUTPUT H and OUTPUT L)
• OUTPUT terminal 4 mm banana terminal
• Operating temperature and humidity range
  • Temperature: -25°C to 65°C (-13°F to 149°F)
  • Humidity:
    • −25°C to 40°C (−13°F to 104°F): 80% RH or less (non-condensing)
    • 40°C to 65°C (104°F to 149°F): Linearly reduces from 80% RH or less at 40°C (104°F) to 25% RH or less at 65°C (149°F) (non-condensing)
• Storage temperature and humidity range -30°C to 70°C (-22°F to 158°F) 90% RH or less (non-condensing)
• Standards EN 61010
• P2000 Compatible Models: DT4261, CM4375-50, CM4373-50, CM4371-50, CM4141-50
