Product Details
Manufacturer:
PCE
Model:
T800
Warranty:
Origin:
-
Technical Specifications
- Khoảng đo:
- Kiểu K:
- Measurement range Accuracy
- -200 ... -150 ºC ±3,0 ºC
- -150 ... -100 ºC ±2,0 ºC
- -100 ... 999,9 ºC ±0,05 % / ±1,0 ºC
- 1000 ... 1370 ºC ±0,2 % / ±1,0 ºC
- Type J
- Measurement range Accuracy
- -200 ... -100 ºC ±2,5 ºC
- -100 ... 100 ºC ±1,5 ºC
- 100... 760 ºC ±0,05 % / ±1,0 ºC
- Type E
- Measurement range Accuracy
- -150 ... -100 ºC ±2,0 ºC
- 100 ... 760 ºC ±0,05 % / ±1,0 ºC
- Type T
- Measurement range Accuracy
- -200 ... -150 ºC ±3,0 ºC
- -150 ... -100 ºC ±0,1 % / ±1,5 ºC
- -100 ... 400 ºC ±0,1 % / ±1,5 ºC
- Type R/S
- Measurement range Accuracy
- 0 ... 100 ºC ±5,0 ºC
- 100 ... 300 ºC ±3,0 ºC
- 300 ... 999,9 ºC ±0,05 % / ±2,0 ºC
- 1000 ... 1600 ºC ±0,1 % / ±2,0 ºC
- Type N
- Measurement range Accuracy
- 0 ... 999,9 ºC ±0,1 % / ±1,0 ºC
- 1000 ... 1300 ºC ±0,2 % / ±1,0 ºC
- Type L
- Measurement range Accuracy
- -200 ... 900 ºC ±0,1 % / ±1,0 ºC
- Type U
- Measurement range Accuracy
- 0 ... 600 ºC ±0,1 % / ±1,0 ºC
- Type B
- Measurement range Accuracy
- 600 ... 999,9 ºC ±0,05 % / ±2,0 ºC
- 1000 ... 1760 ºC ±0,1 % / ±2,0 ºC
- Type C
- Measurement range Accuracy
- 0 ... 999,9 ºC ±0,1 % / ±1,5 ºC
- 1000 ... 1760 ºC ±0,2 % / ±1,5 ºC
- mV
- Measurement range Accuracy
- -60 mV ... 60 mV ±60 µV
- - Màn hình hiển thị:
- 4,5" STN LCD (240 X 128 pixels )
- " - Nguồn: 8 pin x 1,5 V AA
- DC 12 V mains component/ 300 mA
- output AC 110 V / 220 V input
- "
- Current consumption :
- 100 mA (with backlight)
- 70 mA (without backlight)
- Kích Thước: 257 x 155 x 57 mm
- Khối lượng: 1160 g ( with batteries )
- Operating conditions: 0 ºC ... 50 ºC / 85% H.r .
- Storing conditions: -20 ºC ... 60 ºC / 75% H.r .
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

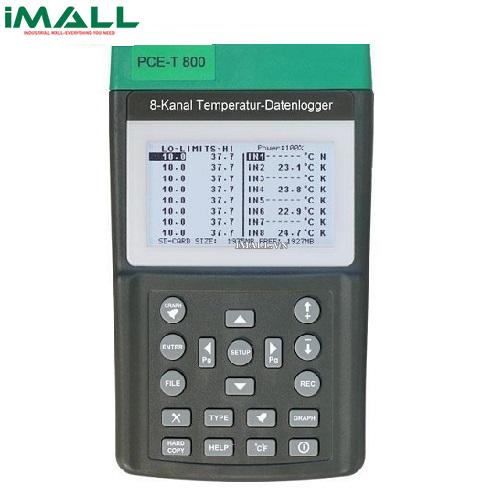

Máy đo nhiệt độ với data logger hiển thị đồng thời 8 kênh đo PCE T800
