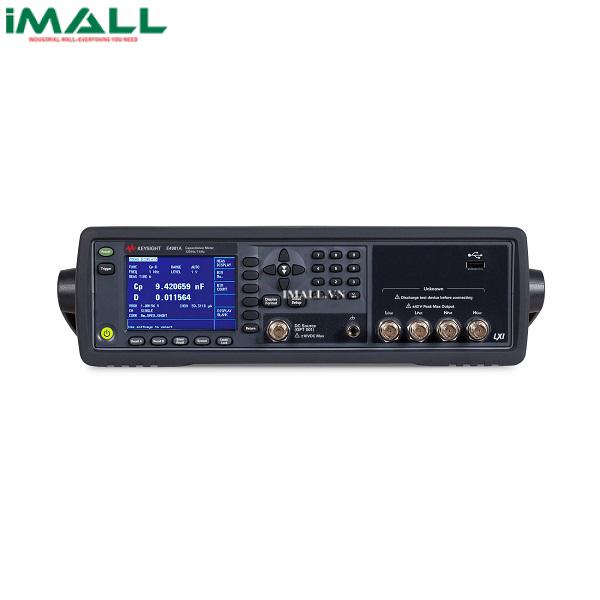

KEYSIGHT E4981A Capacitance Meter (1.02MHz, 150VA)

Technical Specifications

• Measurement parameters
• Measurement signals:
• Frequency
• Allowable frequencies
  • 120 Hz
  • 1 kHz
  • 1 MHz
  • 0.98 MHz (1 MHz – 2%)
  • 0.99 MHz (1 MHz – 1%)
  • 1.01 MHz (1 MHz + 1%)
  • 1.02 MHz (1 MHz + 2%)
• Measurement cable lengths: 0 m, 1 m, 2 m
• Measurement range:
• Measurement signal frequency 120 Hz: 10nF ~ 1mF
• Measurement signal frequency 1 kHz: 100 pF ~ 100 μF
• Measurement signal frequency 1 MHz / 1 MHz ± 1% / 1 MHz ± 2%: 1pF ~ 1nF
• Measurement display ranges
  • Cs, Cp: ±1.000000 aF to 999.9999 EF
  • D: ±0.000001 to 9.999999
  • Q: ±0.01 to 99999.99
  • Rs, Rp: ±1.000000 aΩ to 999.9999 EΩ
  • G: ±1.000000 aS to 999.9999 ES
  • Δ%: ±0.0001 % to 999.9999 %
• Power source
• Voltage: 90 VAC to 264 VAC
• Frequency: 7 Hz to 63 Hz
• Power consumption: Maximum 150 VA
