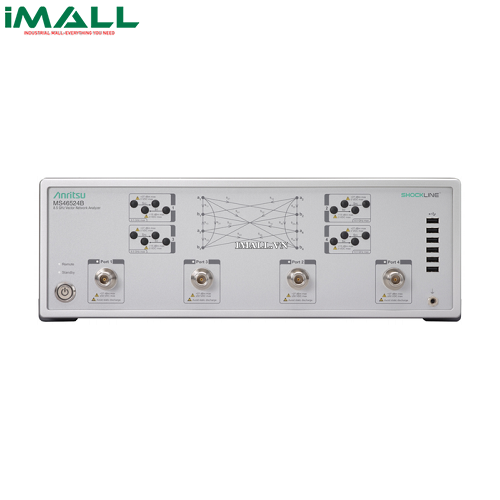

Máy phân tích mạng Vector Anritsu MS46522B (2 port, 50 kHhz — 8.5 GHz)

Technical Specifications

• Simultaneous sweep captures all S-parameters in one sweep, increasing production throughput
• High output power allows measurement of high attenuation devices
• Industry leading dynamic range enables measurement of very low reflection artifacts
• Excellent corrected directivity minimizes measurement uncertainty
• SmartCal auto calibration unit reduces calibration and setup time
• Time domain with time gating option grants easier and faster fault identification
• Modern LAN interface for remote control is faster than GPIB
• A common GUI and SCPI interface within the ShockLine family
• The MS46522B is a series of 2-port Performance ShockLine Vector Network Analyzers. Delivering an unprecedented level of value and performance, including best-in-class dynamic range, the Performance series lowers cost-of-test and speeds time to market in numerous testing applications up to 8.5 GHz. These applications include designing and manufacturing mobile network equipment, mobile devices, automotive cables, high-speed data interconnects and system integration components.
• The MS46522B has modern architecture featuring 2 independent sources and 4 receivers. It has a unique sweep capability called Simultaneous Sweep which allows the two independent sources to sweep at the same time resulting in the measurement of forward and reverse S-parameters in a single sweep! Therefore, it takes half the time of traditional sweeps to make a full 2-port measurement.
• The MS46522B series comes in a 3U high chassis and use the same GUI, software, command syntax, drivers, and programming environments as the rest of the ShockLine family.
• Application:
• Mobile
  • UE – micro coaxial RF connectors
  • UE – Antennas, switches, diplexers, UE Front End Modules (FEM)
• Automotive
  • RF (FAKRA) connectors
• General Purpose
• Passive Component Testing
  • Connectors
  • Cables
  • Electromechanical
  • Switches
  • Attenuators
  • Couplers
  • Filters
  • Isolators
  • Circulators
  • Phase Shifters
• System Integration Applications
  • System calibration
  • Path-loss characterization
  • General s-parameter and time domain measurements
• Frequency Option
• Option
  • MS46522B-010
• Description
  • 50kHz — 8.5 GHz
• Other Options
• Option
  • MS46522B-001
  • MS46522B-002
• Description
  • Rack mount, adds handles and removes feet for shelf-mounting into a 19 in. universal rack
  • Time domain with time gating
