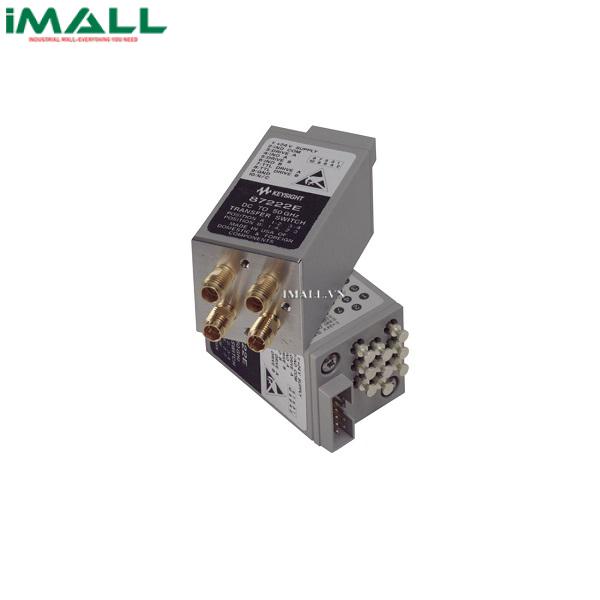

Bộ chuyển mạch đổi nối đồng trục KEYSIGHT 87222E (50 GHz)

Technical Specifications

• Frequency range: DC to 50 GHz
• Insertion loss: 0.15 dB + 0.020 x frequency (GHz)
• Isolation:  DC–26.5 120 dB–2.0 x frequency (GHz) 26.5–50 60 dB
• SWR: 1.3 maximum DC to 12.4 GHz
  •      1.4 maximum 12.4 to 20 GHz
  •      1.5 maximum 20 to 30 GHz
  •      1.6 maximum 30 to 40 GHz
  •      1.7 maximum 40 to 50 GHz
• Insertion loss repeatability: DC–40 GHz < 0.03 dB typical 40–50 GHz < 0.05 dB typical
• Connectors: 2.4 mm (f)
