Product Details
Manufacturer:
KEYSIGHT
Model:
U1194A
Warranty:
Origin:
Authentic
Technical Specifications
- True RMS: yes
- Voltage DC: 60 V, 600 V /0.5%
- Resolution: 0.01 V, 0.1 V
- Voltage DC: 60 V, 600 V /1.2%
- Resolution: 0.01 V, 0.1 V
- Resistance: 600 Ω, 6 kΩ, 60 kΩ /0.8%
- Resolution: 0.1 Ω, 0.001 kΩ, 0.01 kΩ
- Diode: yes
- Current DC:6 μA, 600 μA /1%
- Resolution: 0.01 μA, 0.1 μA
- Current DC: 60 A, 600 A /2%
- Resolution: 0.01 A, 0.1 A
- Current AC:6 μA, 600 μA /1%
- Resolution: 0.01 μA, 0.1 μA
- Current AC: 60 A, 600 A /2%
- Resolution: 0.01 A, 0.1 A
- Capacitance: 600 μF, 6 mF /2%
- Resolution: 0.1 μF, 0.001 mF
- Temperature Type K: -40-1200 oC
- Frequency: 99.99 Hz, 999.9 Hz, 9.999 kHz, 99.99 kHz /0.5%
- Resolution: 99.99 kHz, 0.1 Hz, 0.001 kHz, 0.01 kHz
- Power supply: 2 x 1.5 V AAA
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

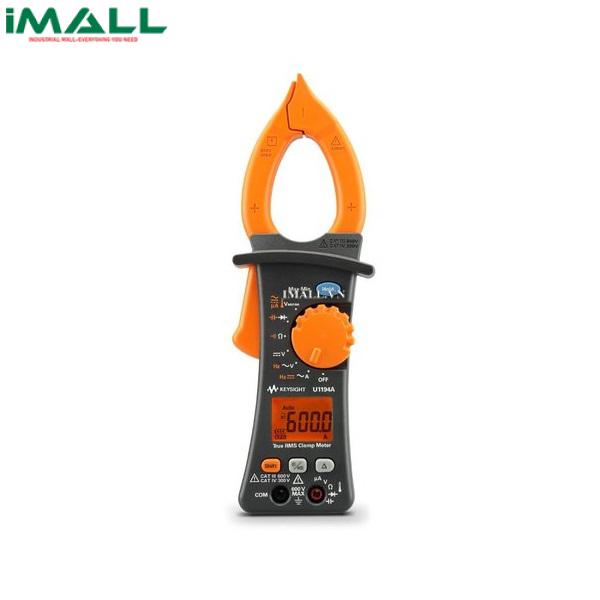

- KEYSIGHT U1194A Clamp Meter (600A; True RMS)
