Product Details
Manufacturer:
SANWA
Model:
LX20
Warranty:
Origin:
Japan
Technical Specifications
- Light sensor element: Si photodiode with approximated relative luminous efficiency
- Display:
- Digital display: 4039 full scale
- Bar graph display: 41-segment display
- Sampling rate:
- Digital display: Approx. 3 times/sec.
- Bar graph display: Approx. 30 times/sec.
- Ranges:
- 400 lx range: 0.1 lx to 403.9 lx
- 4000 lx range: 1 lx to 4039 lx
- 40 klx range: 0.01 klx to 40.39 klx
- 400 klx range: 0.1 klx to 403.9 klx
- Relative spectral sensitivity: Approximating the standard luminous efficiency
- Power supply: LR44 1.5V×2
- Light sensor probe: 84(H)×16(W)×10(D)mm
- Light sensor probe: Aprox. 0.9m
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

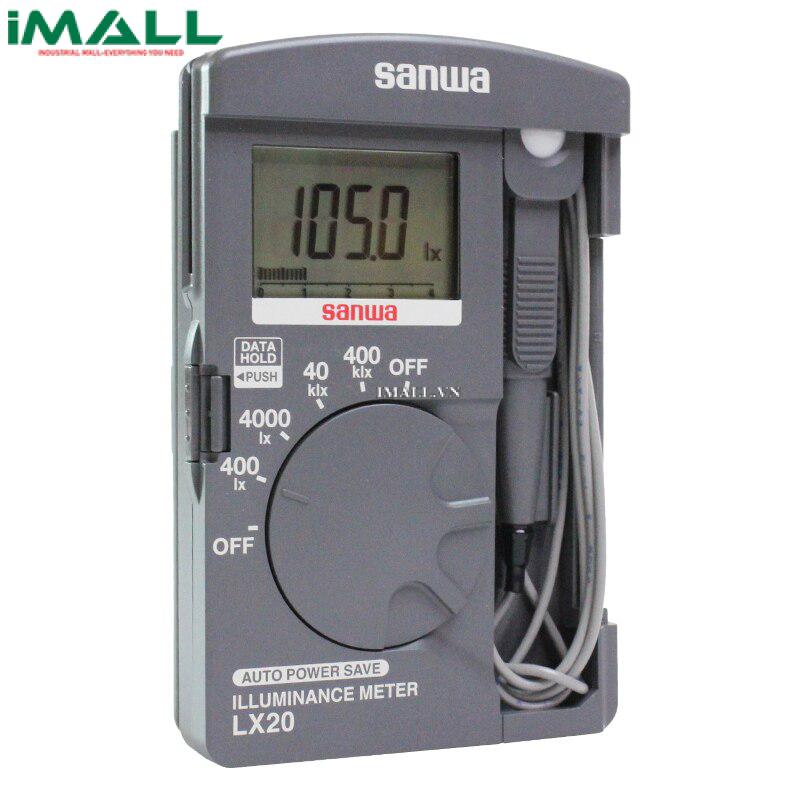

SANWA LX20 Lux Meter (400.000 lux)
- Easy-to-carry pocket size.
- Separate, stick-shaped light sensor (window diameter 9 mm) from the main body enables measurement of a narrow position or area. The light sensor can also be integrated with the main body for measurement.
- 4039 full-scale count with a bar graph display.
- Improved measurement accuracy by using a silicon photodiode, which has a spectral sensitivity approximating the relative luminous efficiency specified by CIE (Commission Internationale d'Eclairage), in the light sensor.
- Wide measuring range of 0.1 lx to 403.9 klx (403,900 lx).
- Data hold function.
- Auto power save function prevents wasting of battery power.
