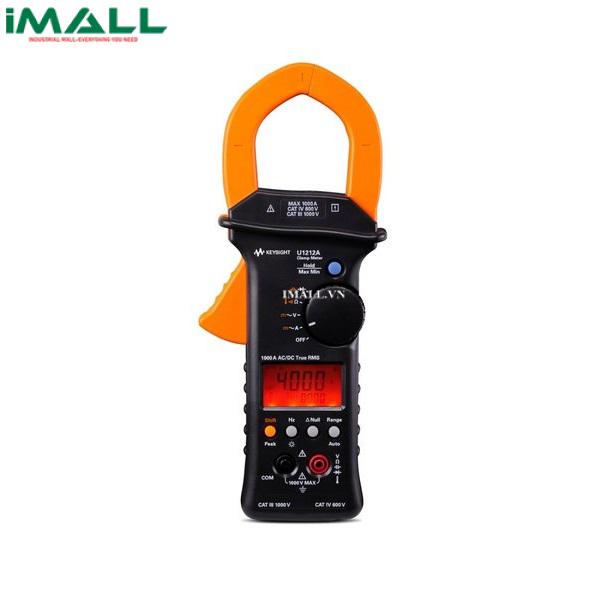

Ampe kìm AC/DC KEYSIGHT U1212A (1000A ; true RMS)

Technical Specifications

• True RMS: AC/DC
• Voltage DC: 400 V, 1000 V /0.5%
• Resolution: 0.1 V, 1 V
• Voltage AC: 400 V, 1000 V /1%
• Resolution: 0.1 V, 1 V
• Resistance: 400 Ω, 4 kΩ /0.5%
• Resolution: 0.1 Ω, 0.001 kΩ
• Diode: Yes
• Current DC: 40 A, 400 A /1.5%, 1000 A /2%
• Resolution: 0.01 A, 0.1 A, 1 A
• Current AC: 40 A, 400 A, 1000 A /2%
• Resolution: 0.01 A, 0.1 A, 1 A
• Capacitance: 400 μF, 4000 μF /2-3%
• Resolution: 0.1 μF, 1 μF
• Temperature type K:–200 - 1372 oC (option)
• Frequency: 99.99 Hz, 999.9 Hz, 9.999 kHz, 99.99 kHz, 999.9 kHz /0.2%
• Resolution: 0.01 Hz, 0.1 Hz, 0.001 kHz, 0.01 kHz, 0.1 kHz
• Power supply: Battery 9V
