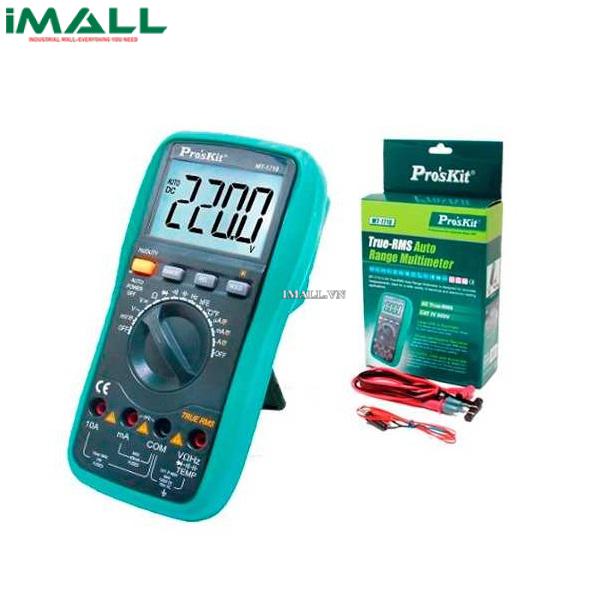

Đồng hồ vạn năng Pro'skit MT-1710 (True-RMS)

Technical Specifications

• DC(V): 400m/4/40/400V ±(0.5%+4d) 1000V ±(1.0%+6d)
• AC(V)True-RMS
• 40~1kHz(sine and triangular wave)
• and 40~200Hz(other wave)：400mV ±(1.6%+8d)
• 4/40/400/750V ±(1.0%+10d)200~1kHz(other wave)：
• 400m/4/40/400/750V ±(8.0%+15d)
• DC(A): 400u/4000uA ±(1.0%+10d)
• 40m/400mA ±(1.2%+8d) 10A ±(1.2%+10d)
• AC(A)True-RMS:
• 40~1kHz(sine and triangular wave)
• and 40~200Hz(other wave)：
• 400u/4000u/40m/400mA ±(1.5%+10d)
• 10A ±(2.0%+15d) 200~1kHz(other wave)：
• 400u/4000u/40m/400m/10A ±(8.0%+15d)
• Điện trở(Ω):400Ω ±(0.8%+5d)
• 4k/40k/400k/4MΩ ±(0.8%+4d)40MΩ ±(1.2%+10d)
• Tần số(Hz):100/1000/10k/100kHz ±(0.5%+10d)
• 1M/30MHz ±(0.5%+10d)
• Tụ điện (F):10n ±(5.0%+20d)
• 100n/1u/10u/100uF ±(3.5%+8d)1/10/100mF ±(5.0%+10d)
• Nhiệt độ(℃/℉):-20~400℃ (-4~752℉) ±(1.0%+5d)
• 400~1000℃ (752~1832℉) ±(1.5%+15d)
• Nguồn cấp: Pin 9V(NEDA 1640/6F22)
