Product Details
Manufacturer:
UNI-T
Model:
UT204A
Warranty:
Origin:
CHINA
Technical Specifications
- Safety Rating
- CAT II 600V
- CAT III 300V
- Certifications
- CE
- EN:61010-1
- EN:61326-1
- EN:61010-2-032
- Specifications
- AC Current 40A/600A ±(2.5%+5)
- DC Current 40A/600A ±(2.5%+5)
- AC Voltage 4V/40V/400V/600V ±(1%+5)
- DC Voltage 400mV/4V/40V/400V/600V ±(0.8%+1)
- Resistance 400Ohm/4KOhm/40KOhm/400KOhm/4MOhm/40MOhm ±(1%+2)
- Capacitance4nF/40nF/400nF/4µF/40µF/100µF±(4%+3)
- Frequency
- 10Hz ~ 10MHz ±(0.5%+3)
- 10MHz Reference only
- Temperature -40 °C ~ 1000°C ±(2.5%+3)
- Features
- Display Count 3999
- Auto Range
- Jaw Capacity 28mm
- Diode
- Auto Power Off
- Continuity Buzzer
- Low Battery Indication
- Data Hold
- MAX Mode
- Setup
- Input Impedance for DCV Around 10MOhm
- General Characteristic
- Power 9V Battery(6F22)
- LCD Size 35.6X 18mm
- Product Color Red and Grey
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

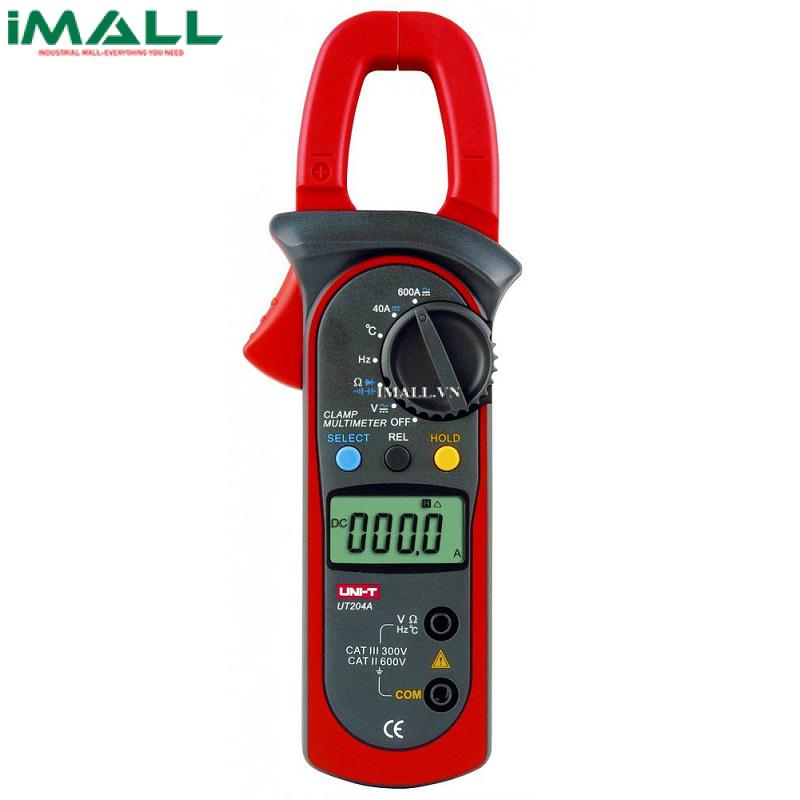

UNI-T UT204A Clamp Multimeter (600A, 600V)
