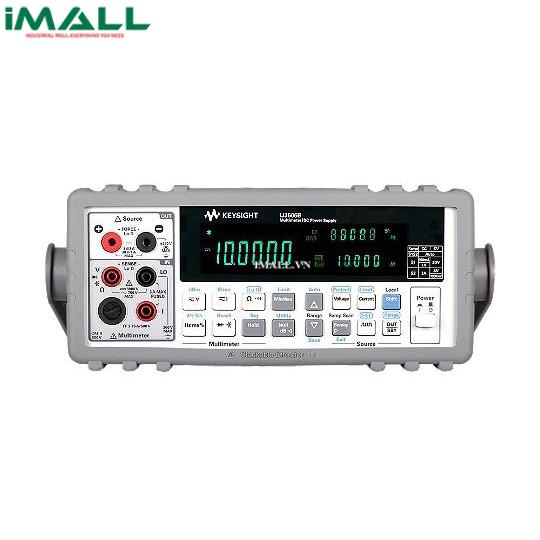

KEYSIGHT U3606B Multimeter - DC Power Supply

Technical Specifications

• 2 options: 5 ½ digit DMM & 30W DC supply
• Reading Speed: 26 readings/s
• Basic 1-Year DCV Accuracy: 0.025%
• Measurement Functions:
  • DCV and ACV
  • DCI and ACI
  • 2- and 4-wire Resistance
  • Frequency
  • Capacitance
  • Diode test
• Connectivity: USB, GPIB
• DC voltage ranges: 19.9999 mV; 100 mV; 1 V; 10 V; 100 V; 1000 V.
• DC current ranges: 10mA; 100mA; 1A; 3A.
• Resistance ranges: 100Ω; 1000Ω; 10kΩ; 100kΩ; 1MΩ; 10MΩ; 100MΩ.
• Low-resistance: 100 mΩ; 1000 mΩ; 10 Ω; 100 Ω; 1000 Ω;
• Diode: 1.0000 V
• Capacitance ranges: 1nF; 10nF; 100nF; 1µF; 10µF; 100µF; 1000 µF; 10000 µF
• True rms AC voltage: 100mV, 1V to 750V
• True rms AC current: 10mA to 3A
• DC supply:
  • 30 V/1 A, 100 mA/30 V, 8 V/3 A and 1000 mV/3 A
  • Excellent line/load regulation of up to 0.01%+3 mV
  • OVP and OCP load protection
